UFACTORY xArm
Leading the Way
in Affordable Cobots
Since 2018

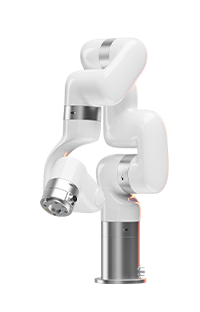

Since its introduction in 2018, the UFACTORY xArm series has delivered dependable automation built on harmonic-drive actuation, lightweight carbon-fiber construction, and open-source software. Available in three model variants, the xArm lineup offers reliable performance, flexible integration, and strong value for a wide range of applications.
- Price from
- US$ 5,299
- Payload
- 3 - 5 kg
- Reach
- 700 mm
- Axes
- 5 / 6 / 7
Performance That Delivers Real Value
Industrial Reliability

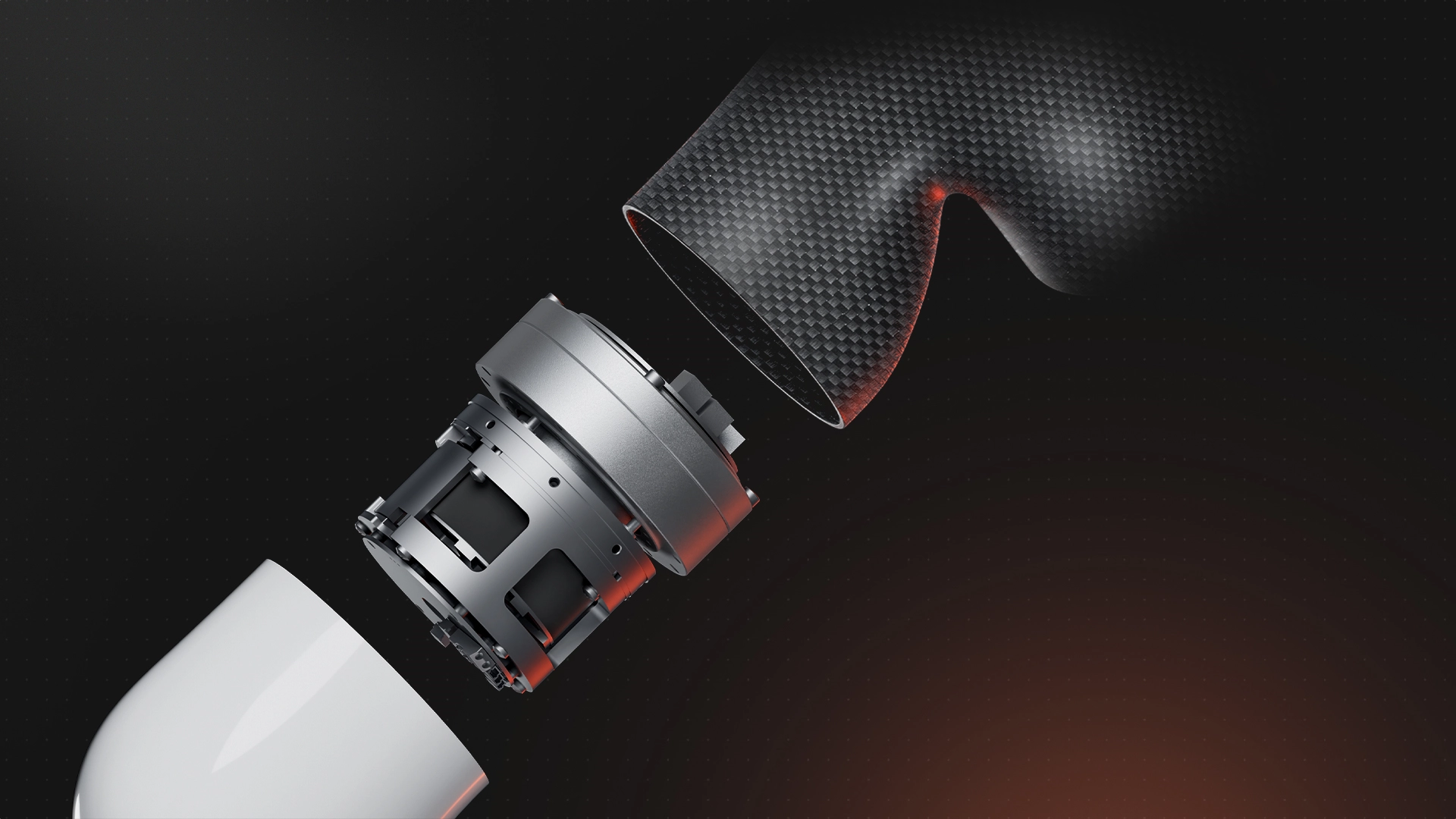

UFACTORY cobots are engineered for dependable, consistent, long-term operation, utilizing industrial-grade harmonic reducers and servo motors to maintain stable performance across demanding workflows.
Compact and Lightweight
Carbon-fiber construction keeps xArm ultra-light at 11.3–14.3 kg (depending on model) with a compact Ø126 mm footprint for simpler transport, mounting, and redeployment.

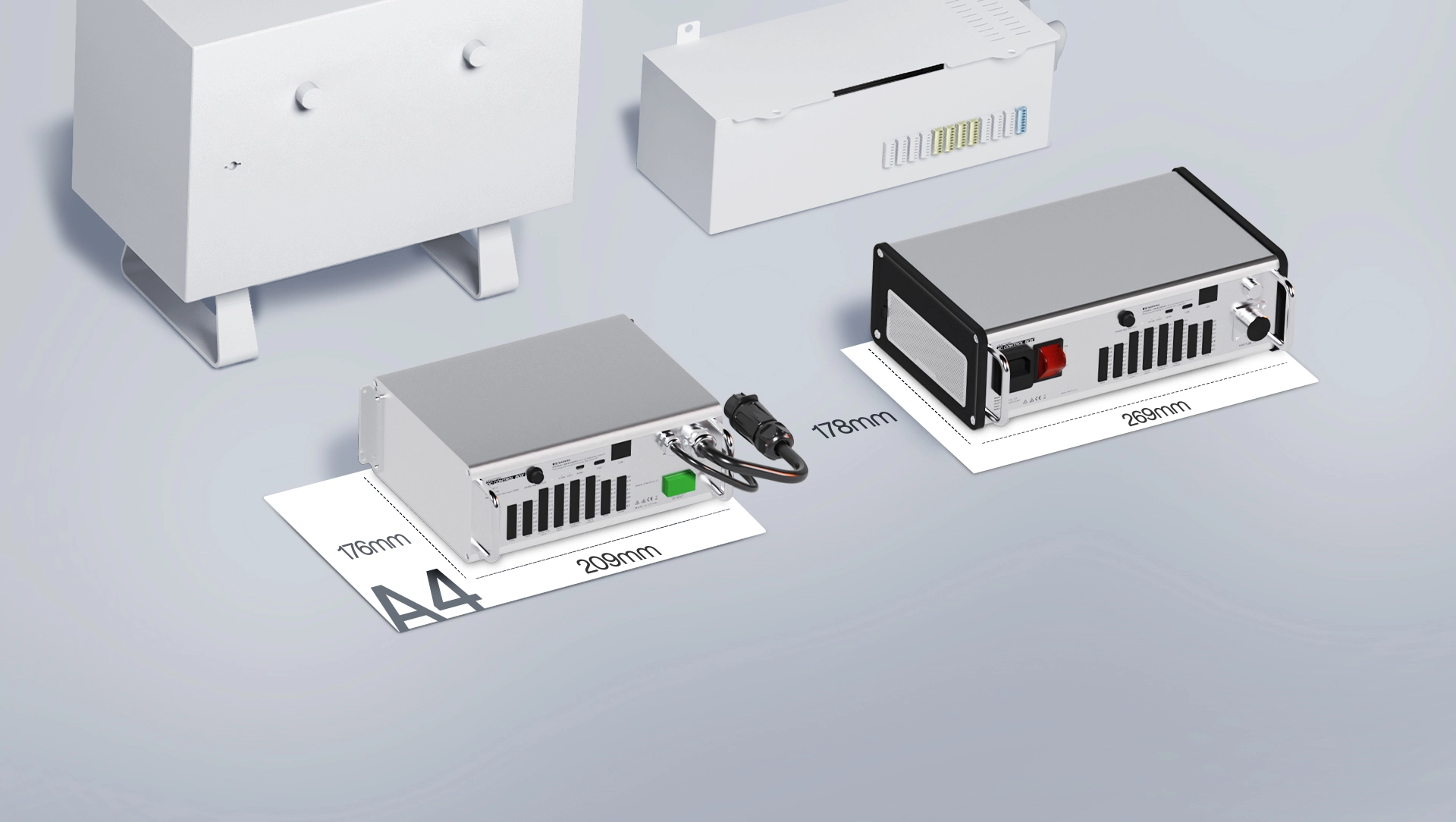

What makes the arm really stand out is the compact controller lineup. Whether mounted under a table or inside a cabinet, the space-saving AC control box (269 × 178 × 86 mm, 3.4 kg) keeps standard installations tidy. For mobile platforms and battery-powered deployments, the DC controller option (209 × 176 × 82 mm, 2.5kg) supports a simpler, lighter integration.
Easy Programming and Control

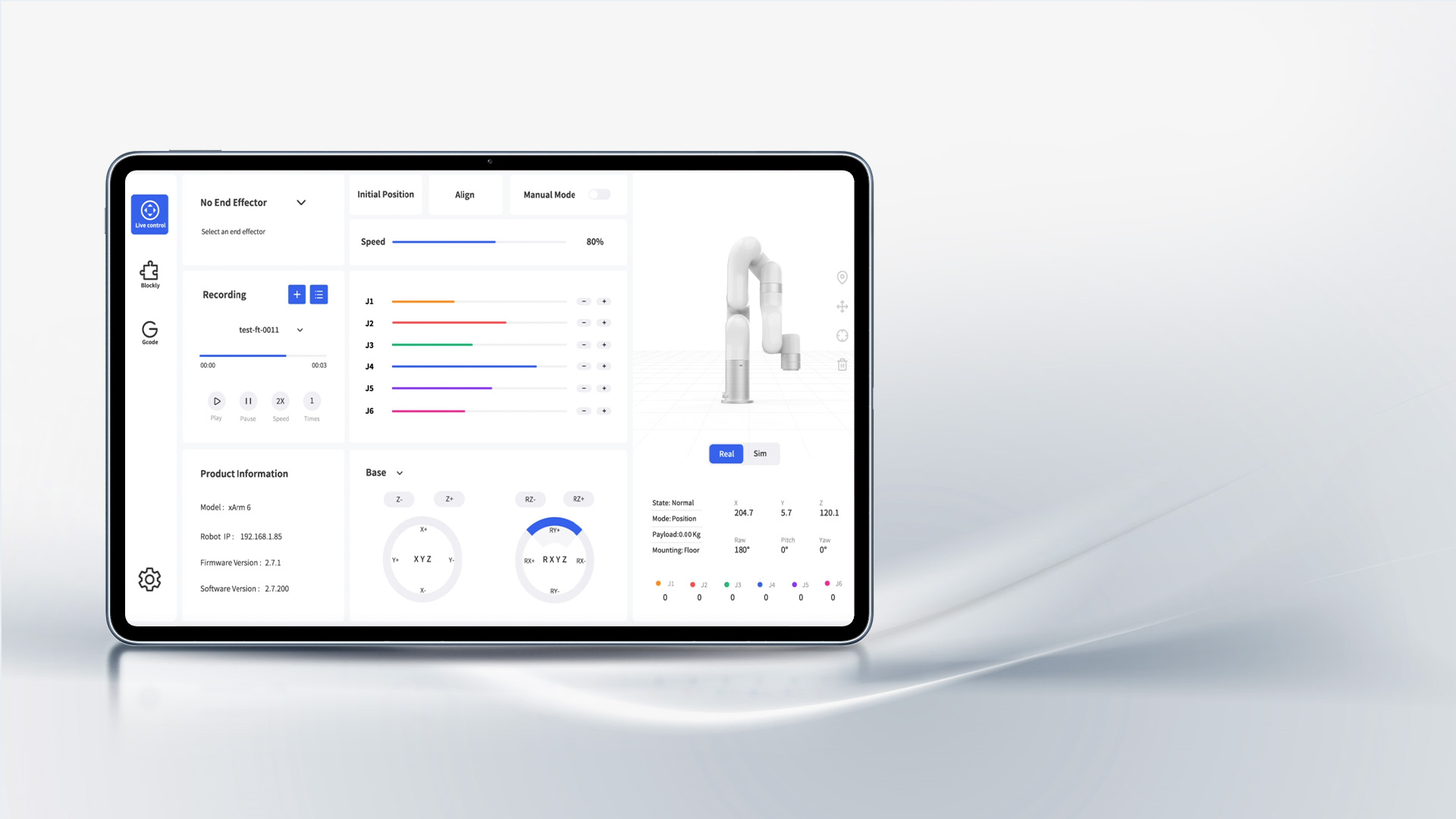

UFACTORY Studio is accessible through any modern web browser on Mac or Windows, or as a downloadable desktop application. A drag-and-drop graphical interface, hand-guiding function, and guided tutorials support fast deployment of automation tasks without requiring prior development experience.
Try Software
Developer-Friendly Interface

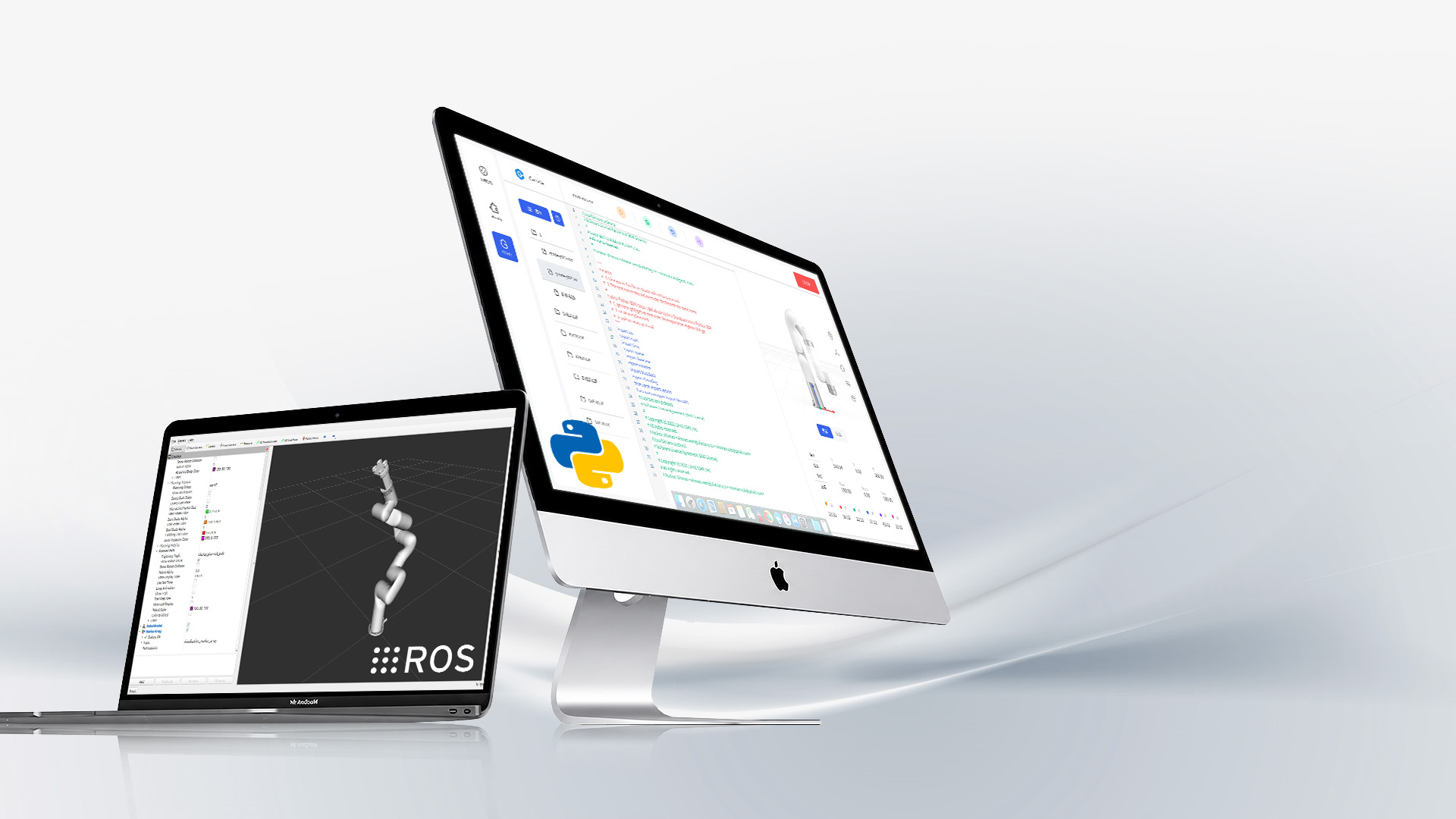

Supports open-source Python and C++ SDKs, with ROS and ROS 2 packages included. Pre-built programs, API documentation, and support for third-party tools streamline advanced application development.
View on GitHub
Simulation Ready

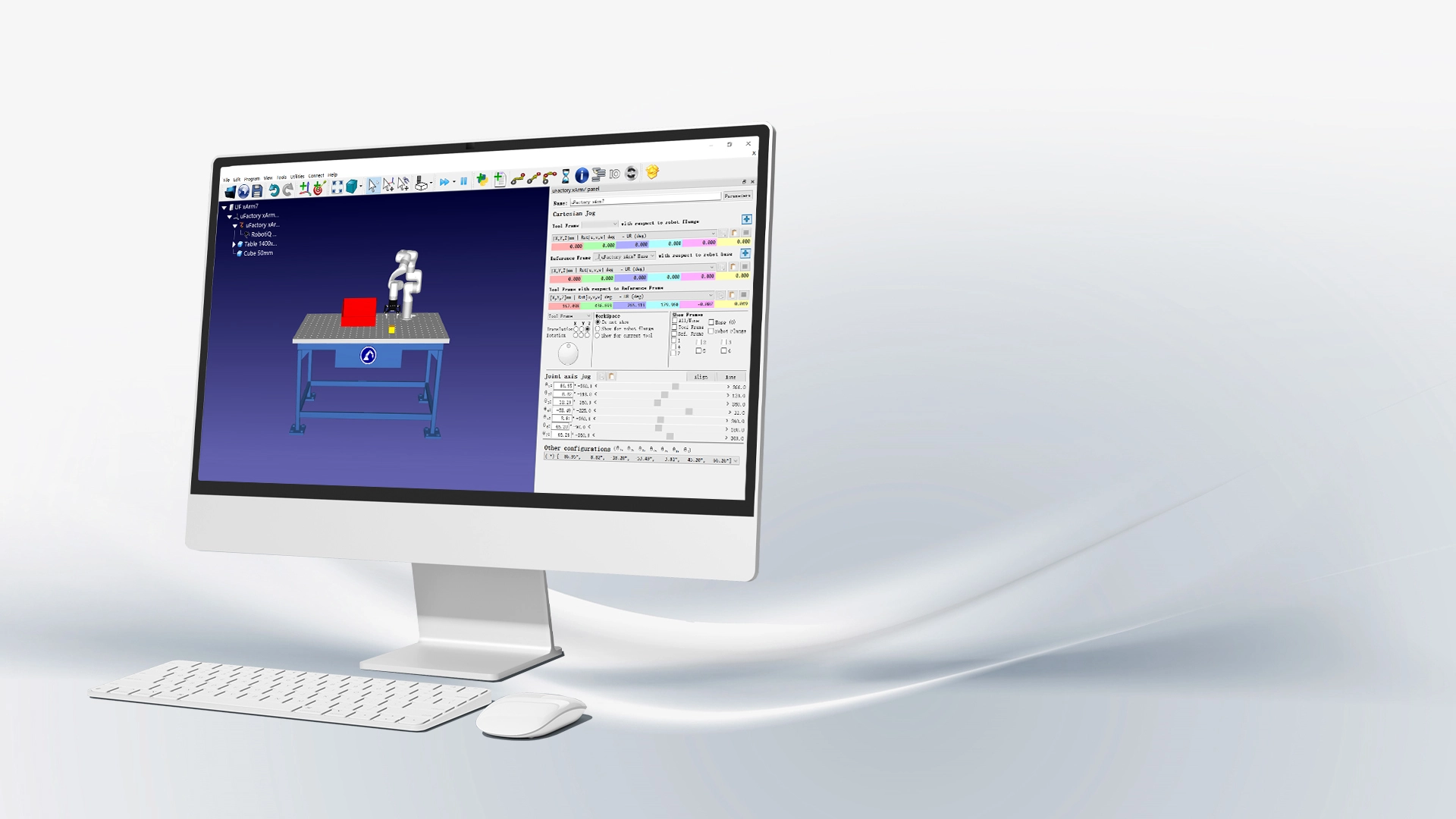

Compatible with leading simulation platforms including Gazebo, RoboDK, MuJoCo, and NVIDIA Isaac Sim. Test motions, validate projects, and train AI policies in virtual environments before deploying to the real robot.
Safe by Design

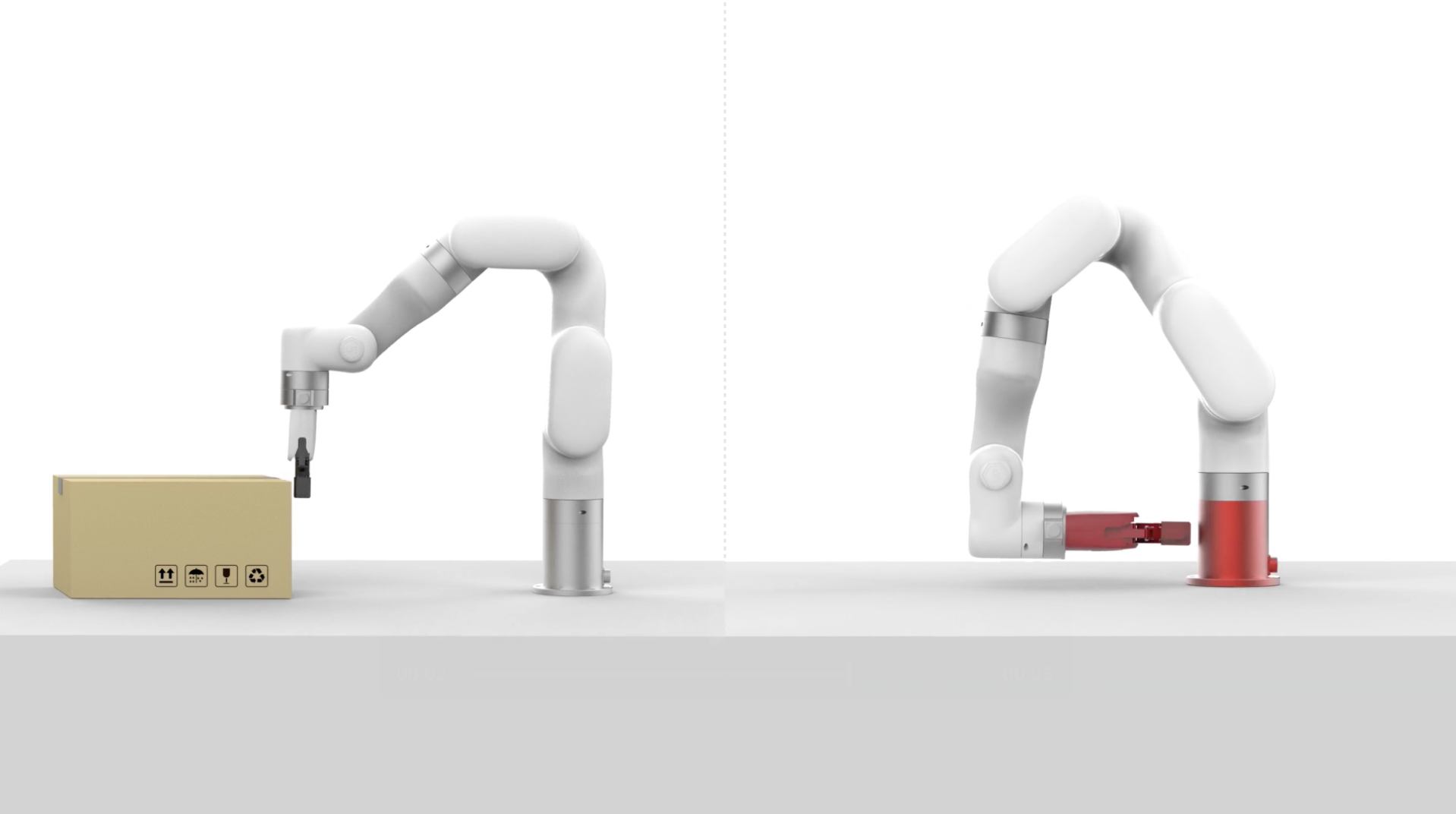

Built-in collision detection monitors for unexpected contact and triggers an automatic protective stop to support safe human–robot collaboration.
Self-Collision Detection prevents unintended contact between robot joints, protecting the arm from mechanical stress and hardware damage.
Configurable Safety Controls

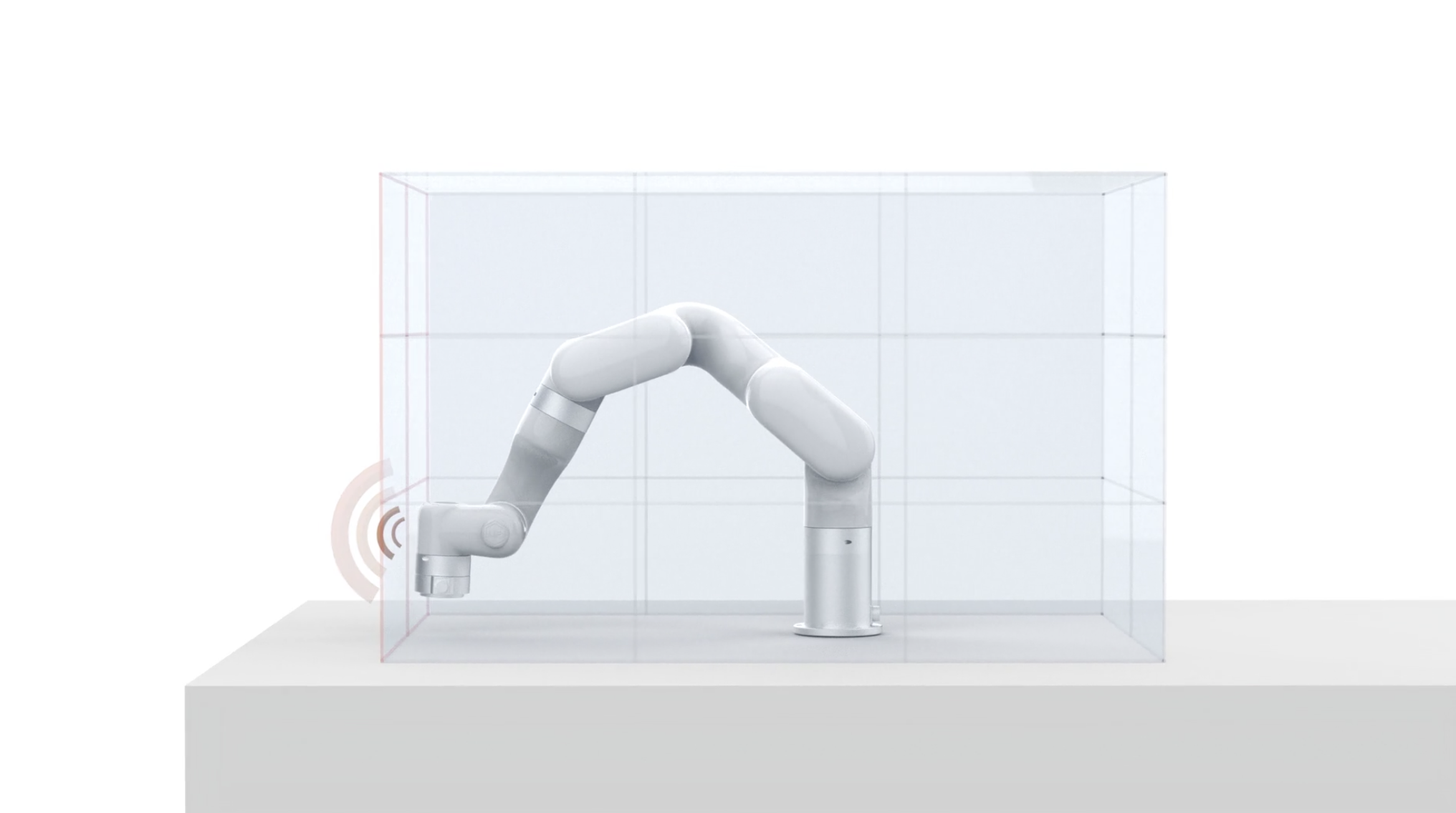

Configure safety boundaries and motion limits (TCP speed, joint speed, and joint range) in UFACTORY Studio for controlled, predictable operation.
Connect external safety devices via I/O and set the robot’s response in software (Stop, Reduced, or Safeguard Stop) to support safer workflows and simpler cell integration.

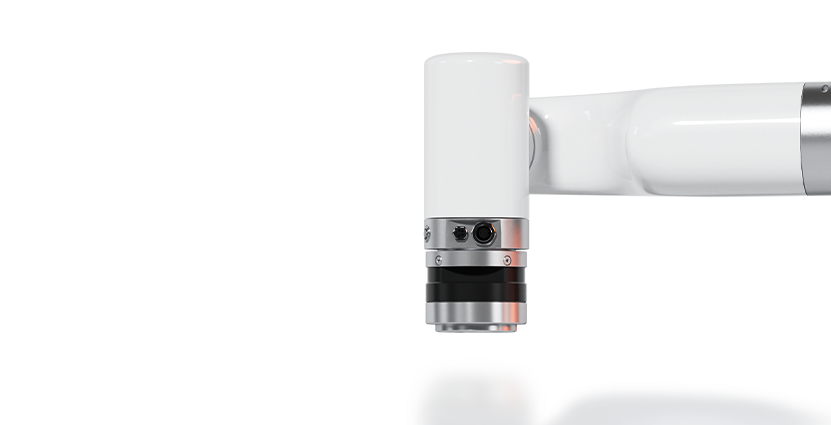

Add a UFACTORY 6-axis force torque sensor for precise force detection in close-contact applications such as rehabilitation, massage, and research.
Integrate with the Tools You Need

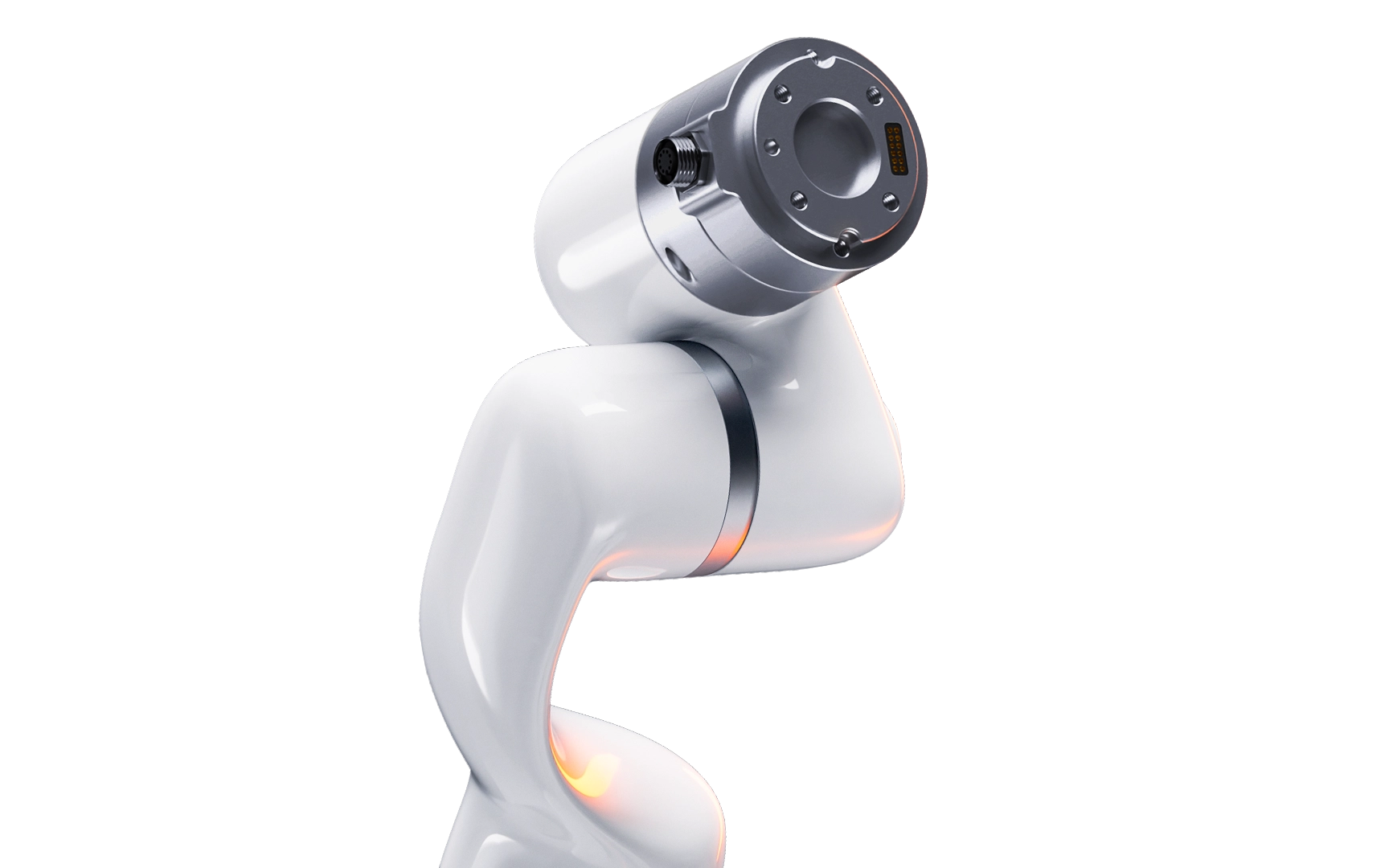

UFACTORY products are built for open integration, connecting seamlessly with both official accessories and trusted third-party solutions. Standard mechanical interfaces, wrist I/O, developer SDKs, and support for standard industrial protocols speed up integration and customization, helping you adapt as needs evolve.

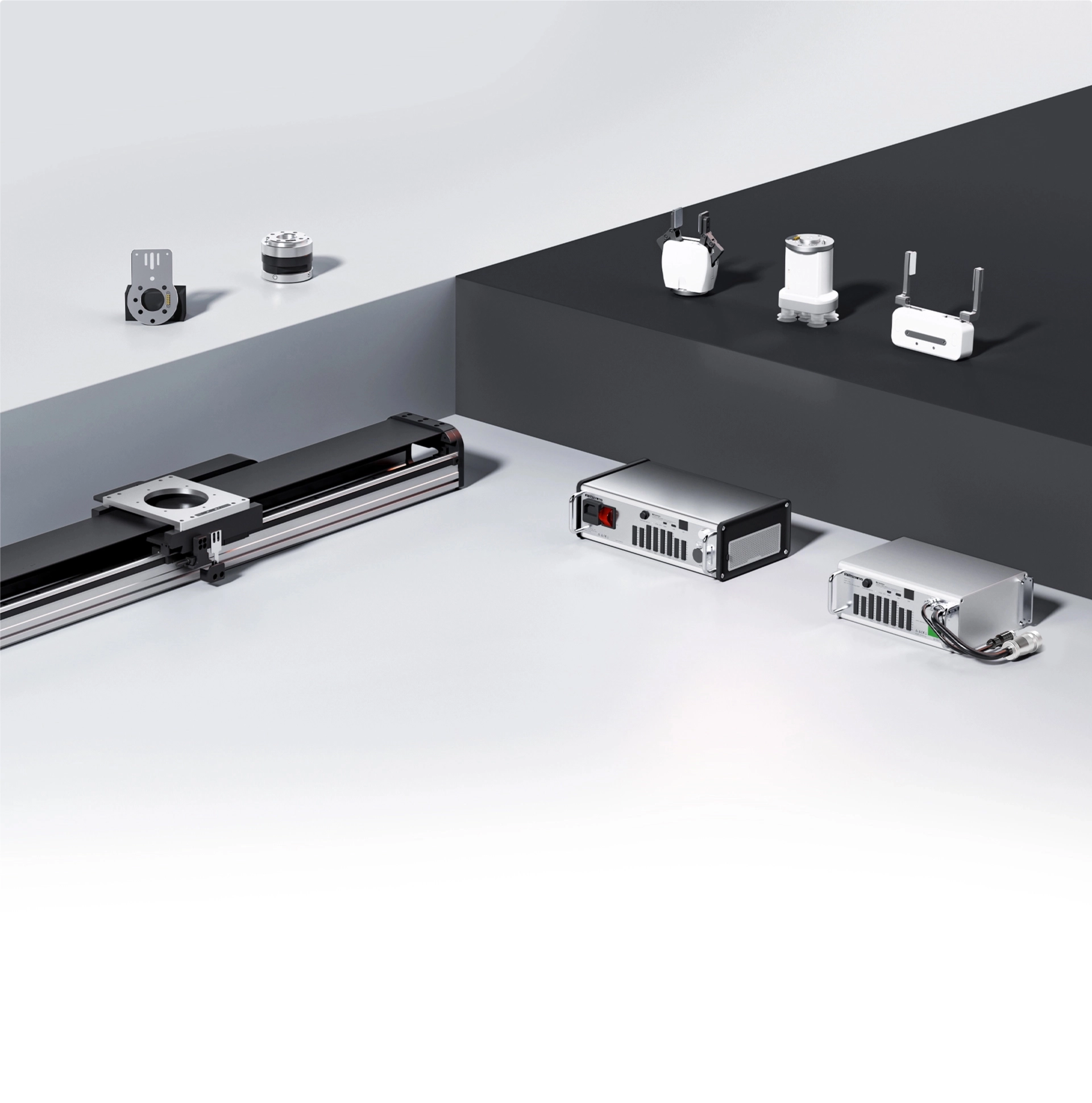

Compatible Accessories
Fully compatible with UFACTORY xArm, our official accessories save setup time from hours to minutes and maximize your production uptime.

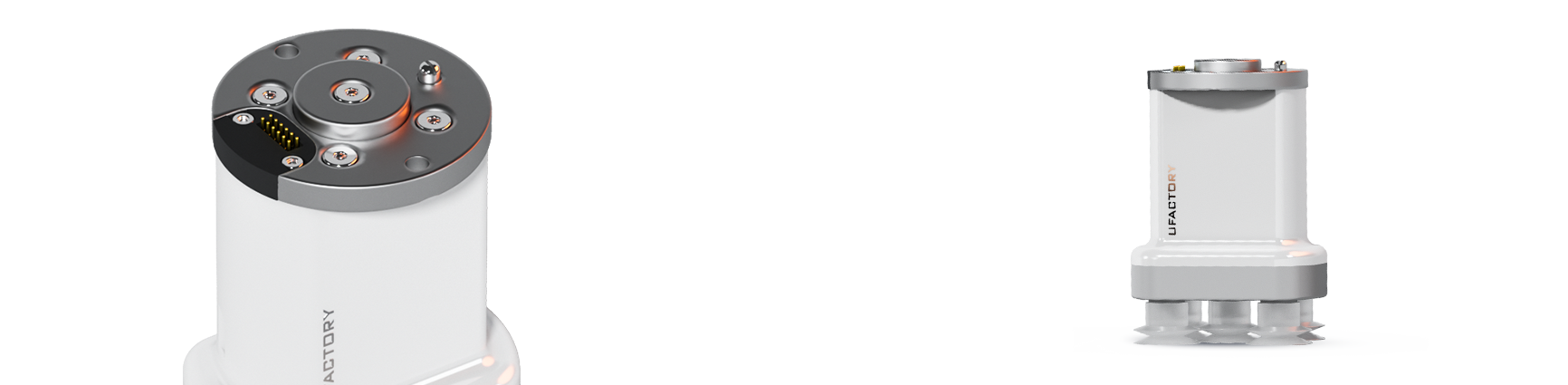

Vacuum Gripper
Designed for gently picking and placing fragile, even or uneven objects
such as cardboard, glass, sheet metal, and plastic.

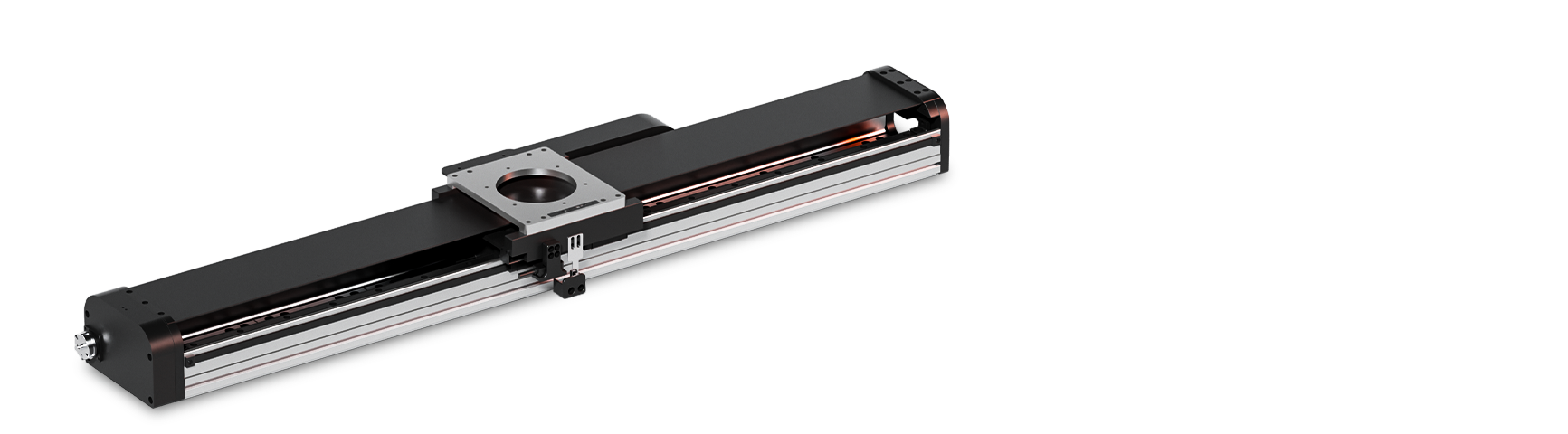

Direct-Drive Linear Motor
Extends xArm’s work envelope by 700 mm or 1500 mm

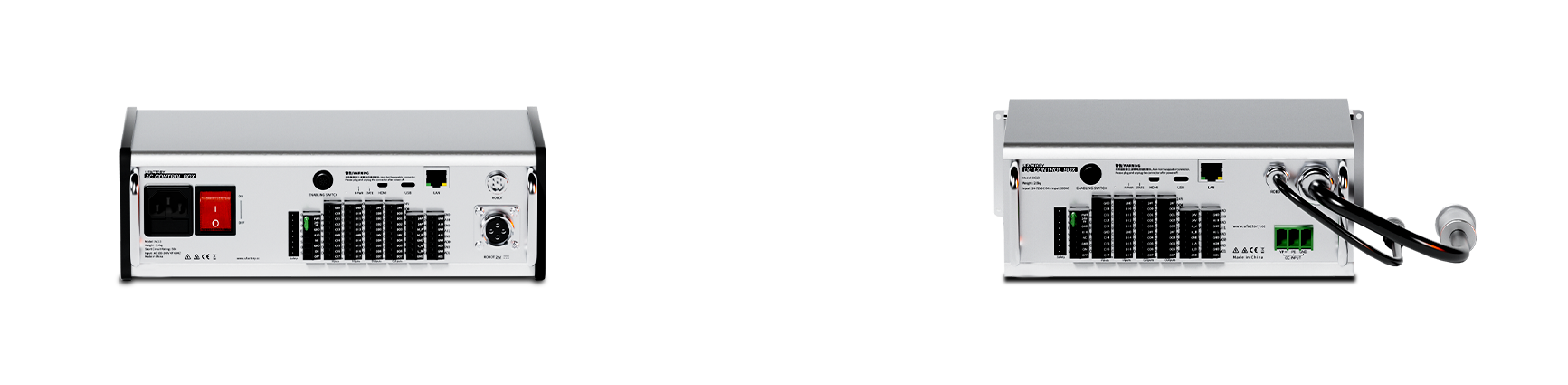

AC/DC Control Box
Provide power, communication and safety for UFACTORY xArm.
Value, Beyond Cobots
Online Store
UFACTORY robots are priced up to two-thirds lower than comparable robot arms. CE and KCS certified. Shop online with transparent pricing and a full product lineup.
Support and Service
From 1-year warranty and 1-business-day response to lifetime support, your user experience is our top priority.
UFACTORY Academy
UFACTORY Academy offers tutorials from setup and programming to troubleshooting, helping you minimize downtime and boost efficiency.
Specifications
- Payload / Reach
- 5 kg / 850 mm
- Repeatability / Degrees of freedom
- ±0.02 mm / 6
- Maximum TCP speed / Weight
- 1 m / s / 20 kg
- Payload / Reach
- 3 kg / 700 mm
- Repeatability / Degrees of freedom
- ±0.1 mm / 5
- Maximum TCP speed / Weight
- 1 m / s / 11.3 kg
- Payload / Reach
- 5 kg / 700 mm
- Repeatability / Degrees of freedom
- ±0.1 mm / 6
- Maximum TCP speed / Weight
- 1 m / s / 12.5 kg
- Payload / Reach
- 3.5 kg / 700 mm
- Repeatability / Degrees of freedom

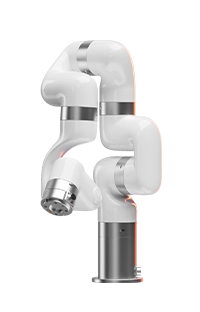

- ±0.1 mm / 7
- Maximum TCP speed / Weight
- 1 m / s / 14.3 kg
Download
More - ALL
- 3D Files
- Software
- Hardware
xArm 5 (XF1305)
xArm 5 Articulated 3D Model
xArm 6 (XI1305)
xArm 6 Articulated 3D Model
xArm 7 (XS1305)
xArm 7 Articulated 3D Model
AC Control Box
AC Control Box Pro (MC1300)
DC Control Box
Mounting Tool
User Manual v2.8.2
Developer Manual v2.0.1
Hardware Manual v2.7.1
Case Studies
See how UFACTORY cobots are successfully deployed in diverse applications—proving
their capabilities and inspiring your automation project.
Imitation Learning Research
Researchers collected demonstration data using a commercially available assistive grabber. The trained policy achieved 87% success on pushing tasks and 62% on stacking, generalizing to objects never seen during training.
More VR Teleoperation
Accessible VR teleoperation using ROS-native xArm to solve labor shortages and safety risks in hazardous environments.

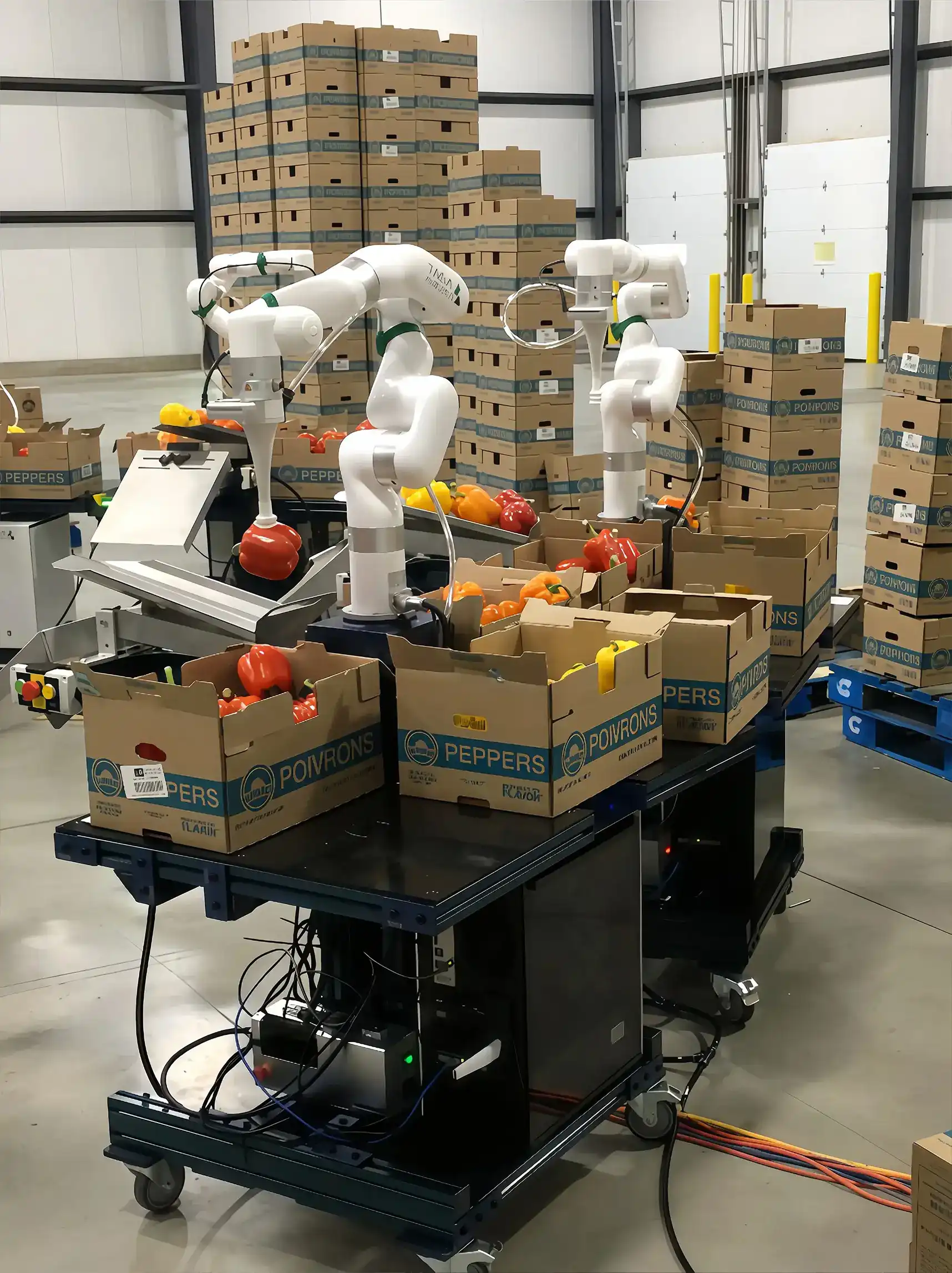

More Sorting, Case Packing, Card Dispensing
Taiga Robotics deploys UFACTORY xArm for intelligent sorting, case packing, and card dispensing, bringing greater flexibility and productivity to a wide range of automation applications.
More Barista Robot
To address rising labor costs, Botlegger chose UFACTORY Arm for its lightweight design and intuitive programming. The xArm fits easily into compact retail environments, operates 24/7, replaces two workers, and handles up to 250 orders daily while delivering strong ROI.
More Tomato Harvesting
TsukArm Robotics deploys UFACTORY xArm in greenhouse environments, enabling precise autonomous tomato harvesting to address agricultural labor shortages and boost crop yield efficiency.
More Automated Denim Spraying
AGI Denim deploys UFACTORY xArm cobots on an automated spray-coating line, delivering precise and consistent denim finishing.
More Robotic Painting
Robohood Inc. uses UFACTORY xArm with AI and computer vision to create neuroimpressionist paintings. The robot artist paints with real brushes, acrylics, and oils on canvas, turning AI-generated art into beautiful physical artworks.
More Robotics Training
CETPM integrates the xArm into 'Karakuri Kaizen' workshops, providing German SMEs with affordable, easy-to-program collaborative robotics training to bridge the gap between traditional lean methods and modern automation.
More Bin Picking
Aivero combines 3D vision and cloud-based ML with the cost-effective xArm 6, enabling economically viable bin-picking automation for under $10k to tackle global labor shortages.

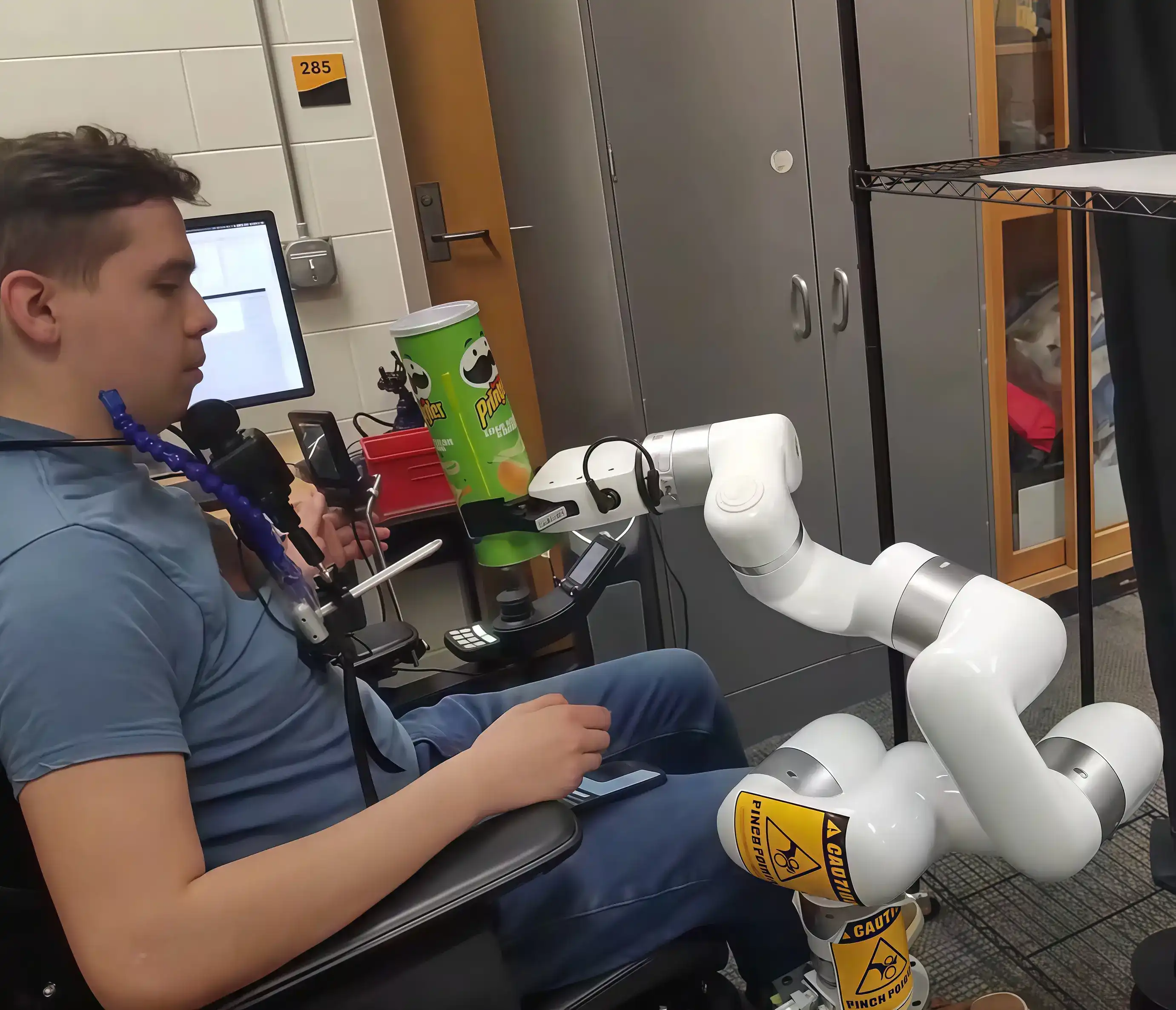

More Assistive Robotic Arm Research
UWM BioRobotics Lab uses UFACTORY xArm to develop assistive robotic systems, enabling mobility-impaired users to perform daily tasks independently through specialized mouth-control interfaces.
More Not sure which model fits your workflow?
Our team will match the right robot and configuration to your needs.
