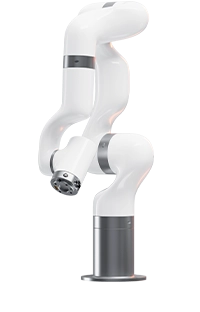

UFACTORY 850
Redefining Precision
and Stability
A 6-axis collaborative robot with an 850 mm reach, the longest in the UFACTORY range. Delivers ±0.02 mm repeatability and high stability for precision welding, smooth camera movement, and high-density pick-and-place operations.
- Price from
- US$ 8,999
- Reach
- 850 mm
- Payload
- 5 kg
- Repeatability
- ±0.02 mm
Performance You Can Rely On
Built for Endurance

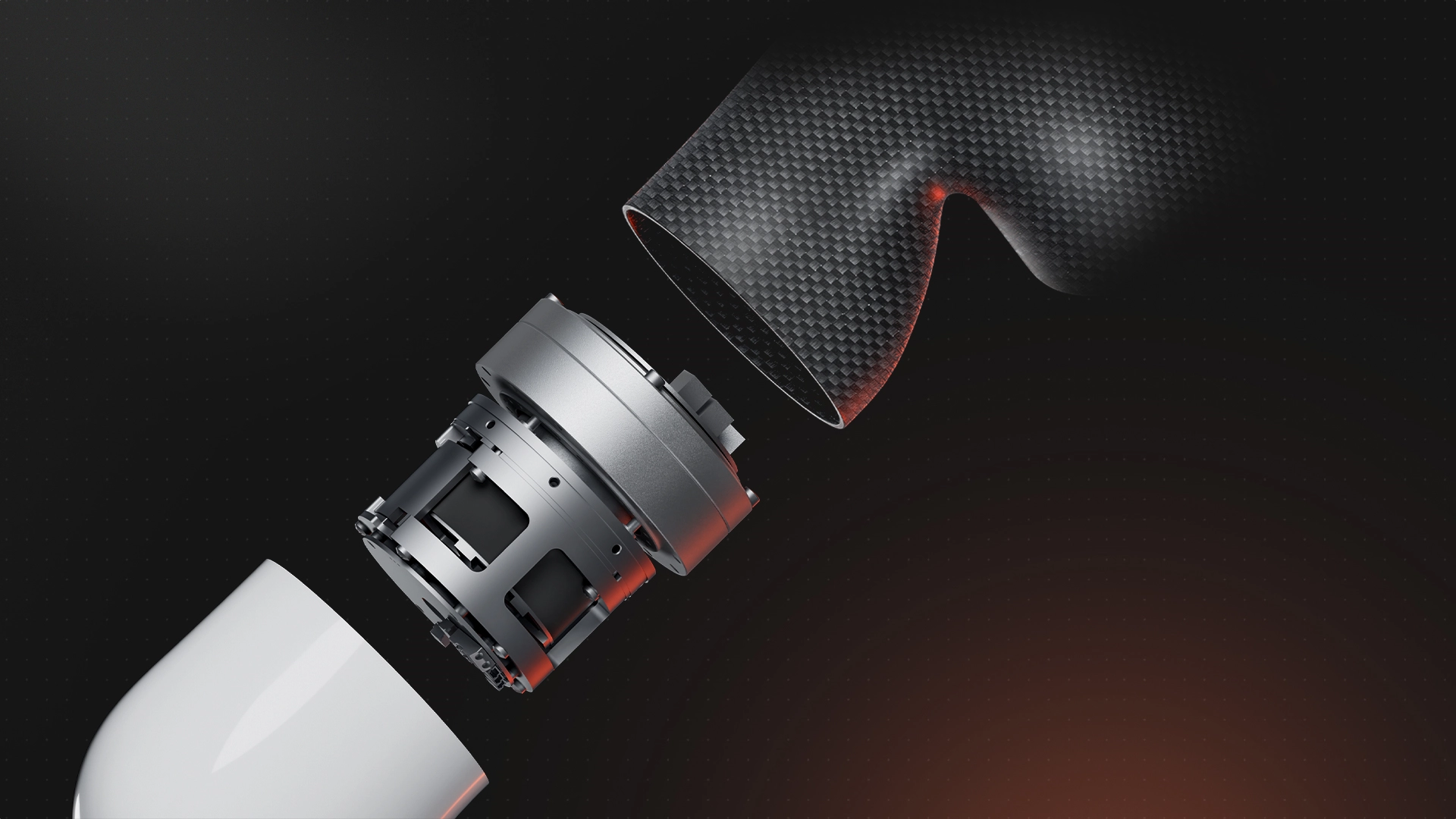

Built with industrial-grade harmonic drives and servo motors designed for precision and continuous operation, along with 17-bit absolute encoders for accurate position feedback. A reinforced structure and upgraded drive system support consistent high-precision performance, ensuring product quality.

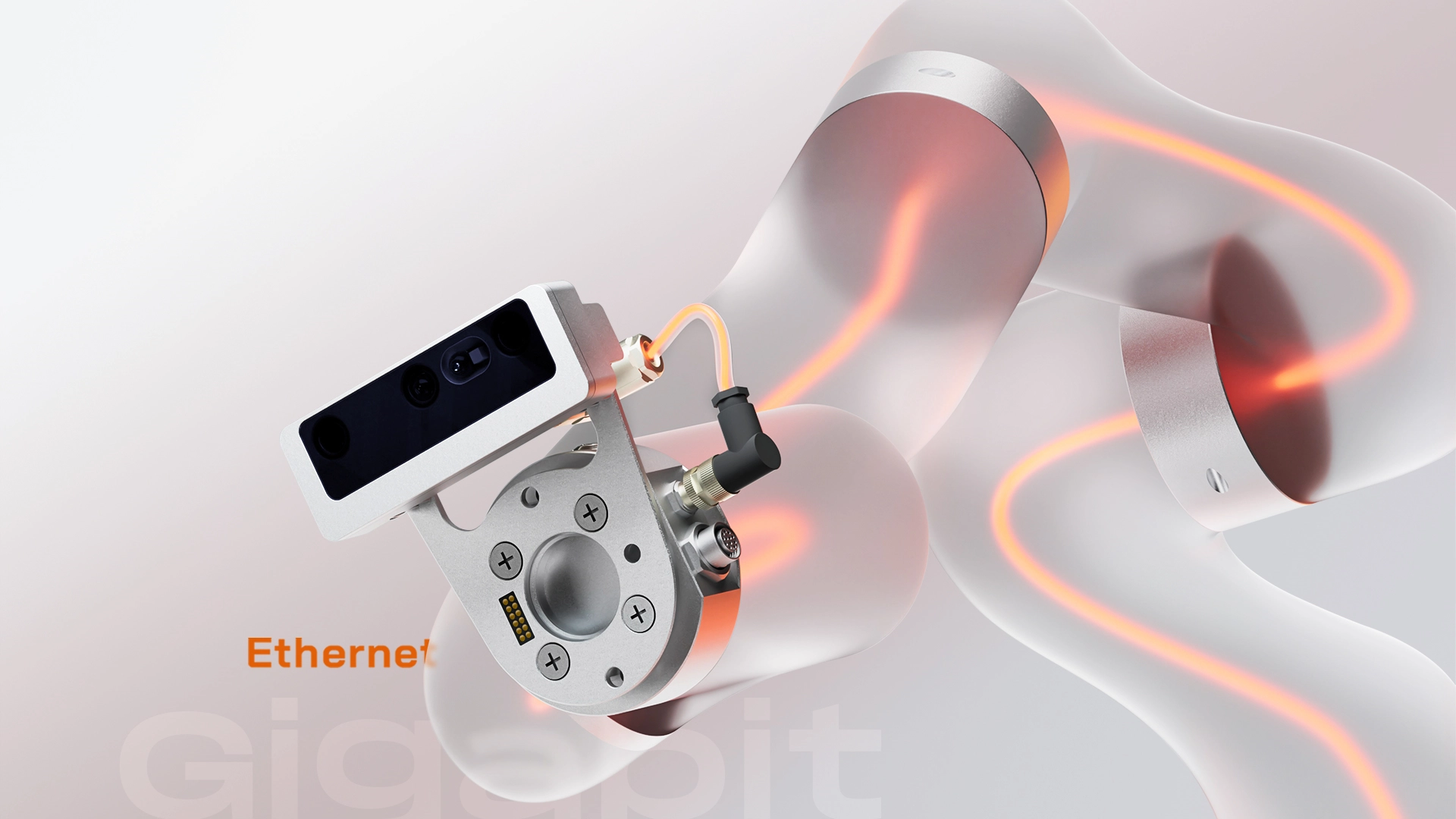

Seamless Vision Integration
An integrated Gigabit Ethernet cable provides high-speed, stable connectivity for Ethernet-based peripherals such as cameras and sensors. Internal cable routing protects connections and improves long-term durability.
Compact and Lightweight
Weighs only 20 kg with a compact Ø190 mm footprint. The robot arm features a carbon fiber body, enabling easy relocation and integration into tight, space-limited environments.

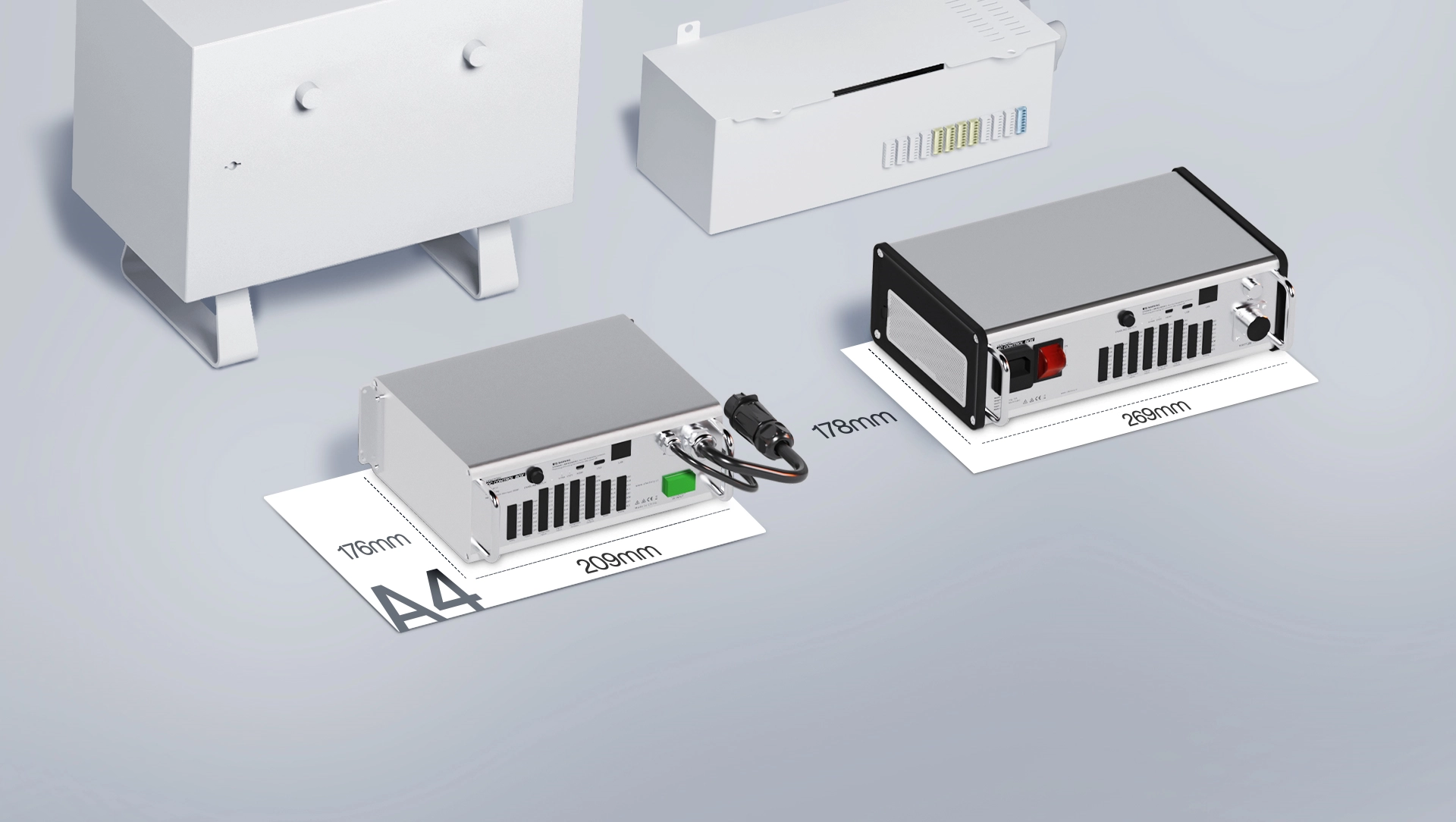

Where it really stands out is the compact controller lineup. The space-saving AC control box (269 × 178 × 86 mm, 3.8 kg) keeps standard installations tidy—whether mounted under a table or inside a cabinet. For mobile platforms and battery-powered deployments, the 2.5 kg DC control option (209 × 176 × 82 mm) supports a simpler, lighter integration.

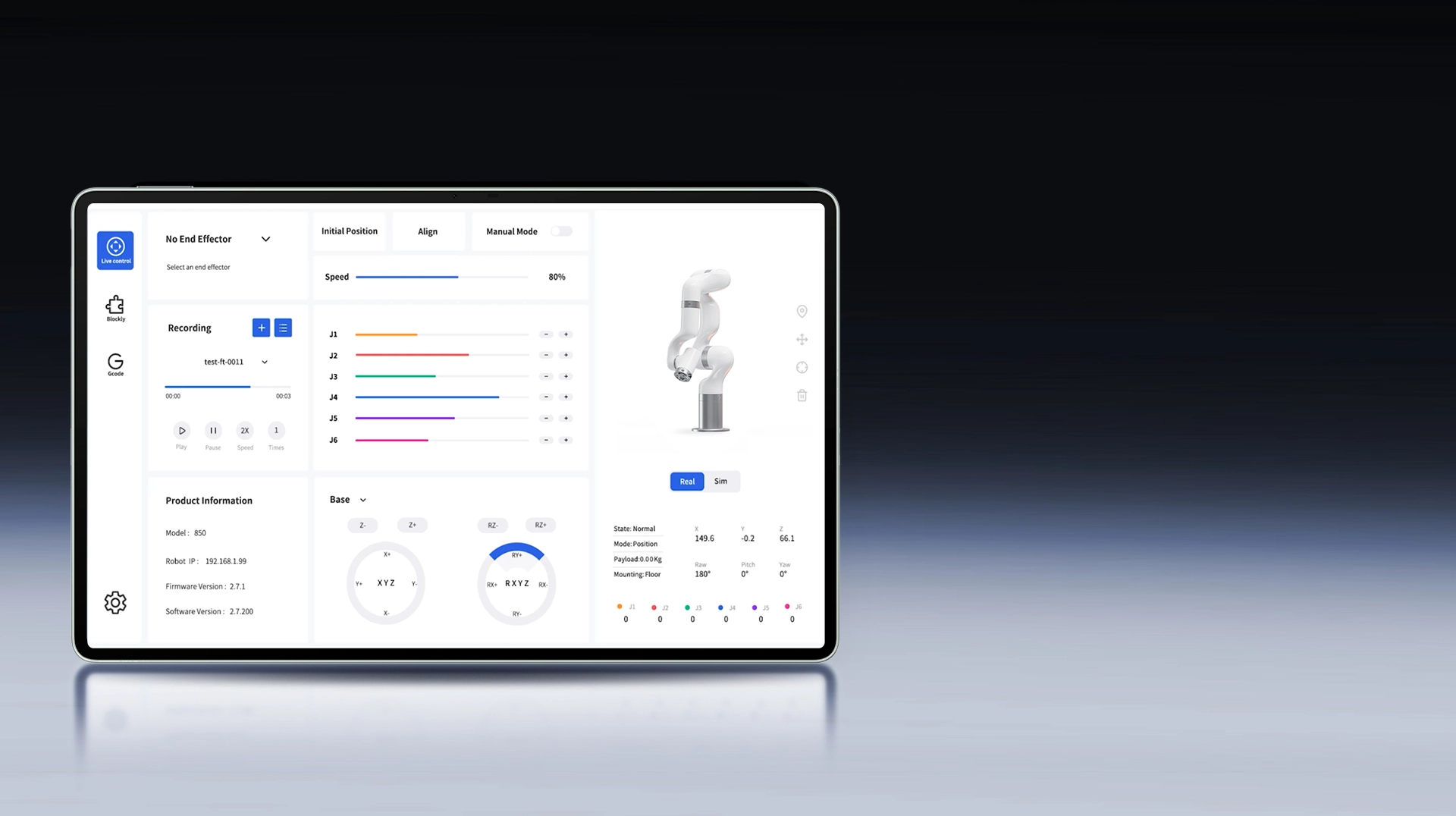

Easy Programming and Control
UFACTORY Studio is accessible through any modern web browser on Mac or Windows, or as a downloadable desktop application. A drag-and-drop graphical interface, hand-guiding teaching, and guided tutorials support fast deployment of automation tasks without requiring prior development experience.
Try Software

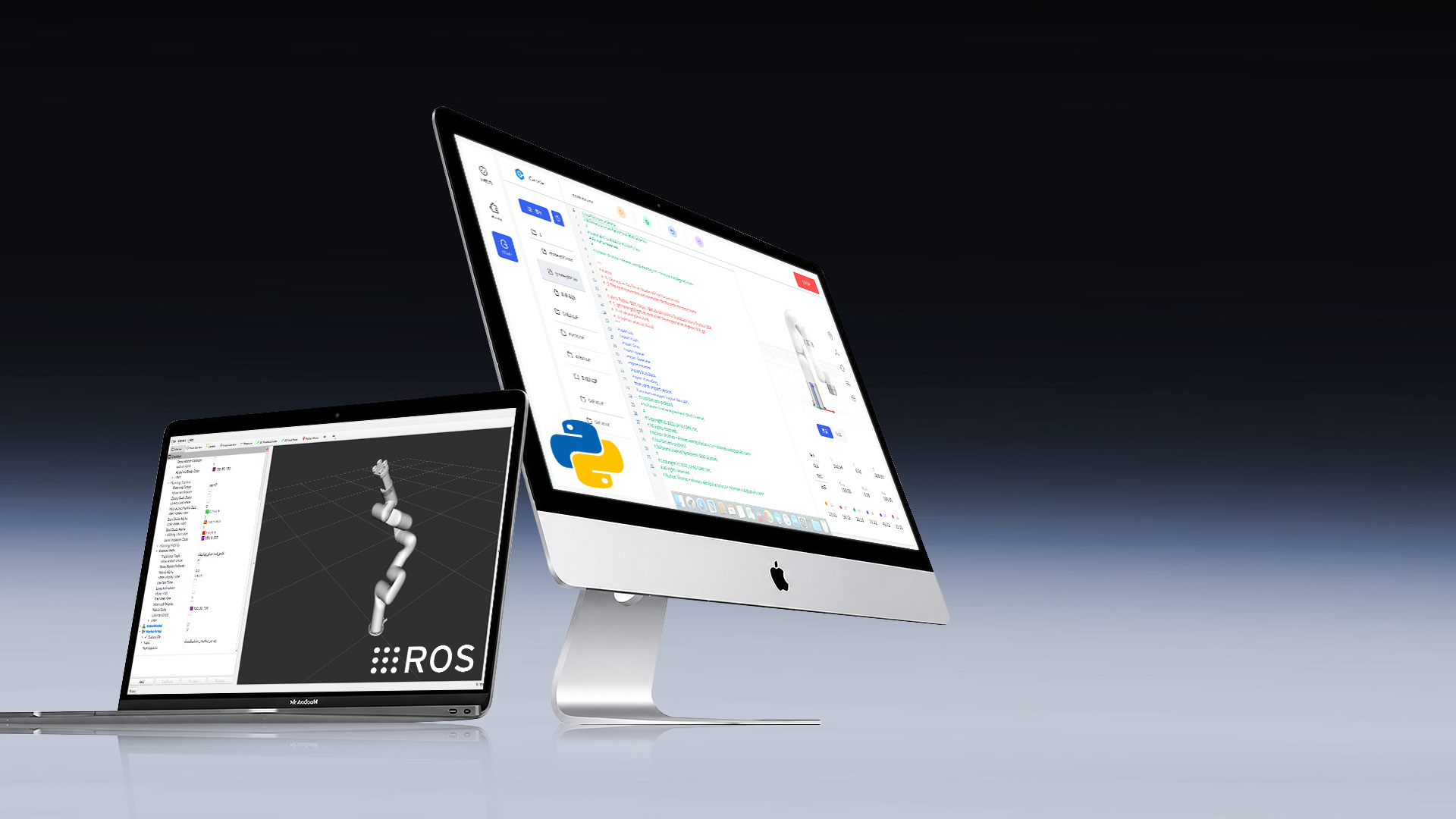

Developer-Friendly Interface
Supports open-source Python and C++ SDKs, with ROS and ROS 2 packages included. Pre-built programs, API documentation, and support for third-party tools streamline advanced application development.
View on GitHub

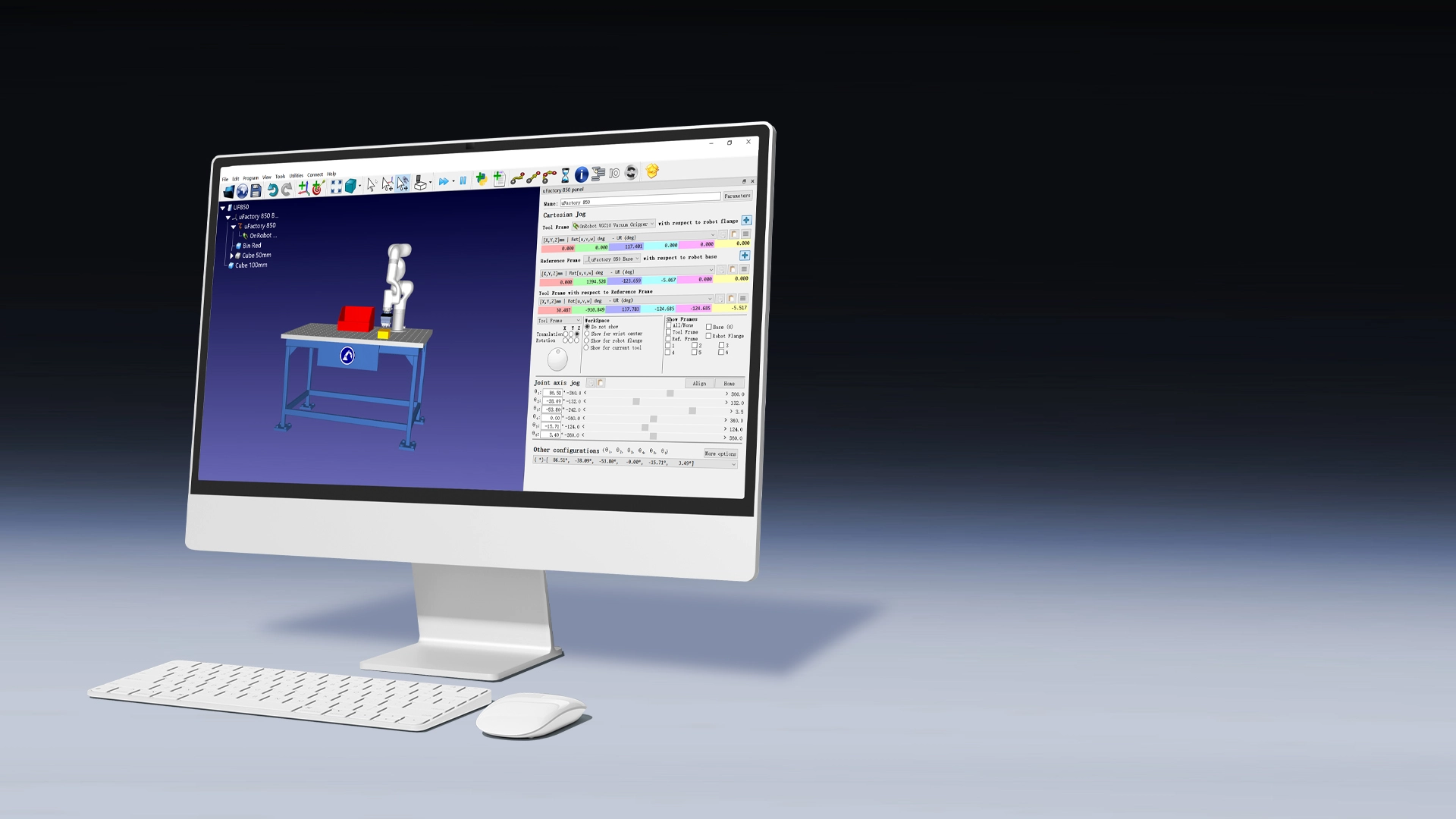

Simulation Ready
Compatible with leading simulation platforms including Gazebo, RoboDK, MuJoCo, and NVIDIA Isaac Sim. Test motions, validate projects, and train AI policies in virtual environments before deploying to the real robot.

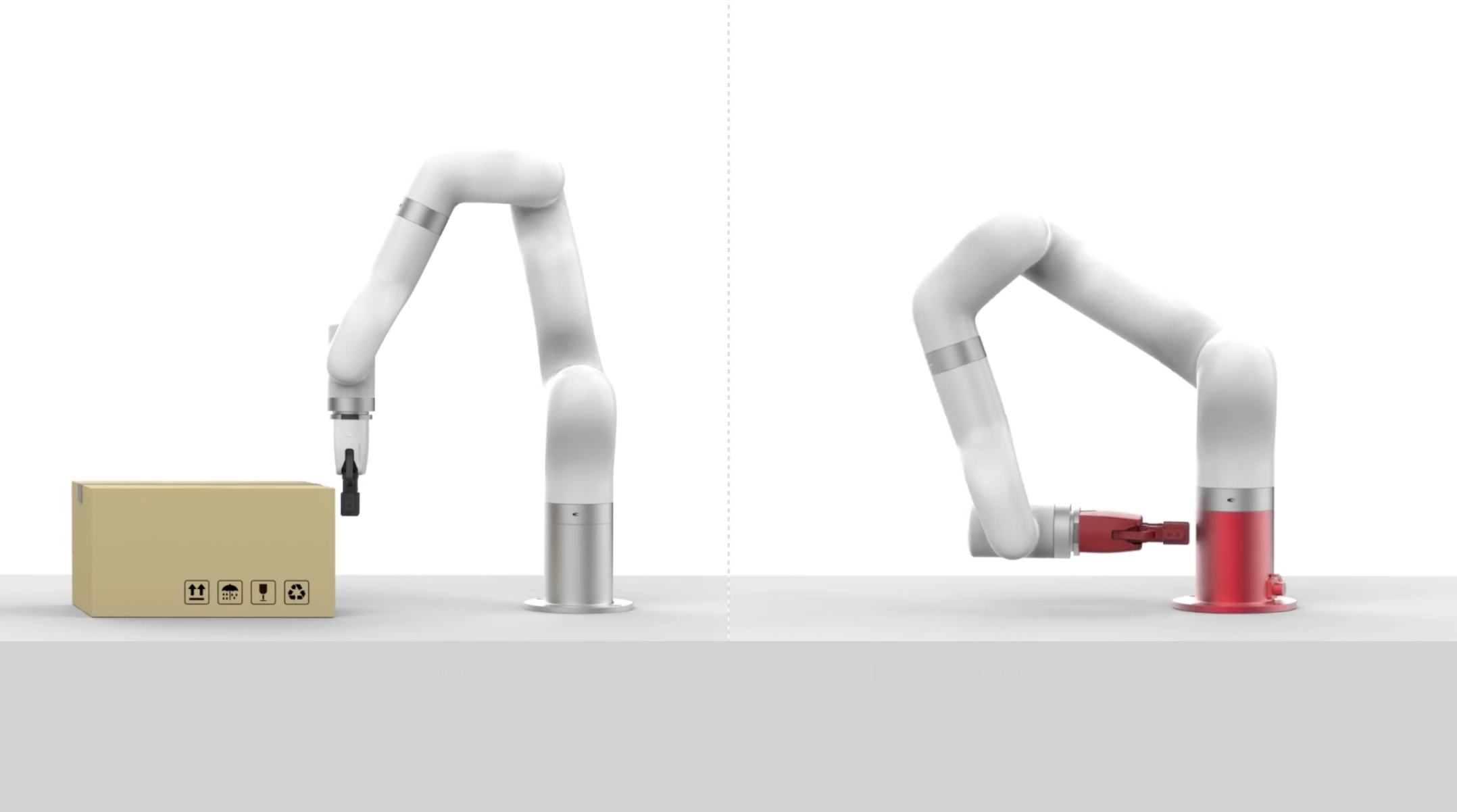

Safe by Design
Built-in collision detection monitors for unexpected contact and triggers an automatic protective stop to support safe human–robot collaboration.
Self-Collision Detection prevents unintended contact between robot joints, protecting the arm from mechanical stress and hardware damage.

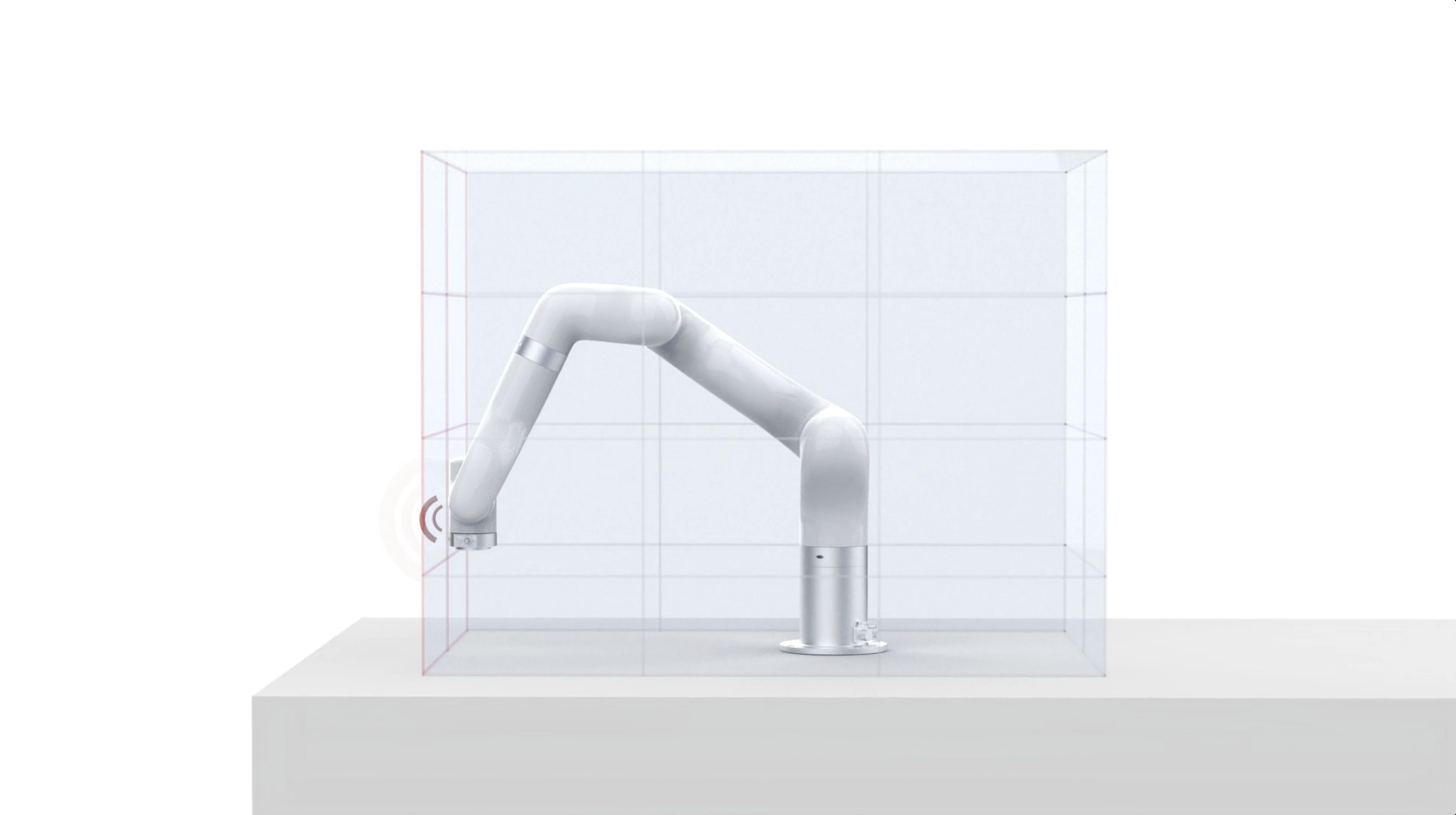

Configurable Safety Controls
Configure safety boundaries and motion limits (TCP speed, joint speed, and joint range) in UFACTORY Studio for controlled, predictable operation.
Connect external safety devices via I/O and set the robot’s response in software (Stop, Reduced, or Safeguard Stop) to support safer workflows and simpler cell integration.

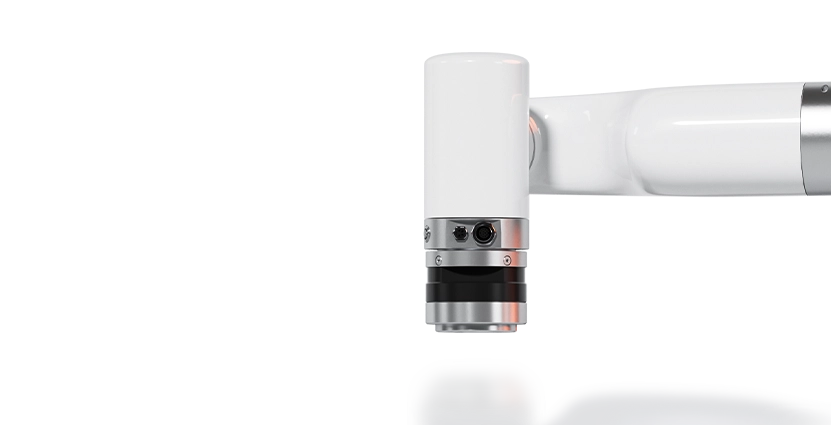

Add a UFACTORY 6-axis force torque sensor for precise force detection in close-contact applications such as rehabilitation, massage, and research.
Integrate with the Tools You Need
UFACTORY products are built for open integration, connecting seamlessly with both official accessories and trusted third-party solutions. Standard mechanical interfaces, wrist I/O, developer SDKs, and support for standard industrial protocols speed up integration and customization, helping you adapt as needs evolve.

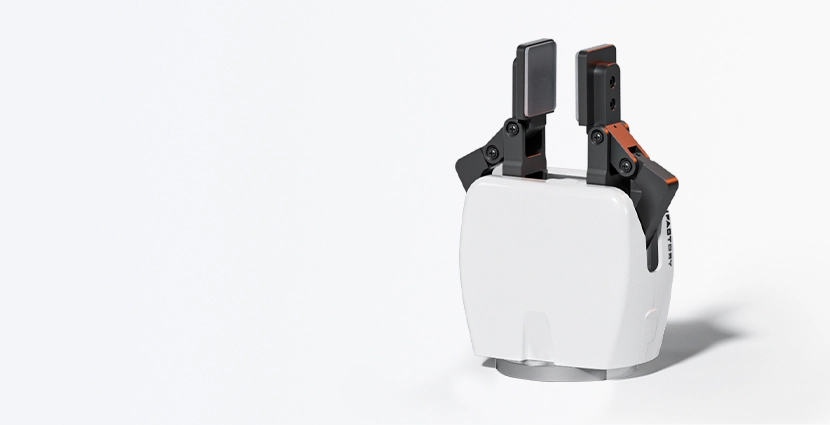

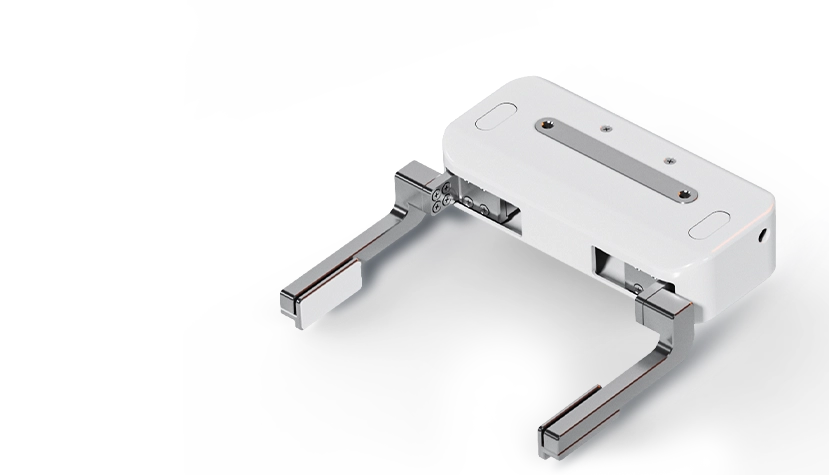

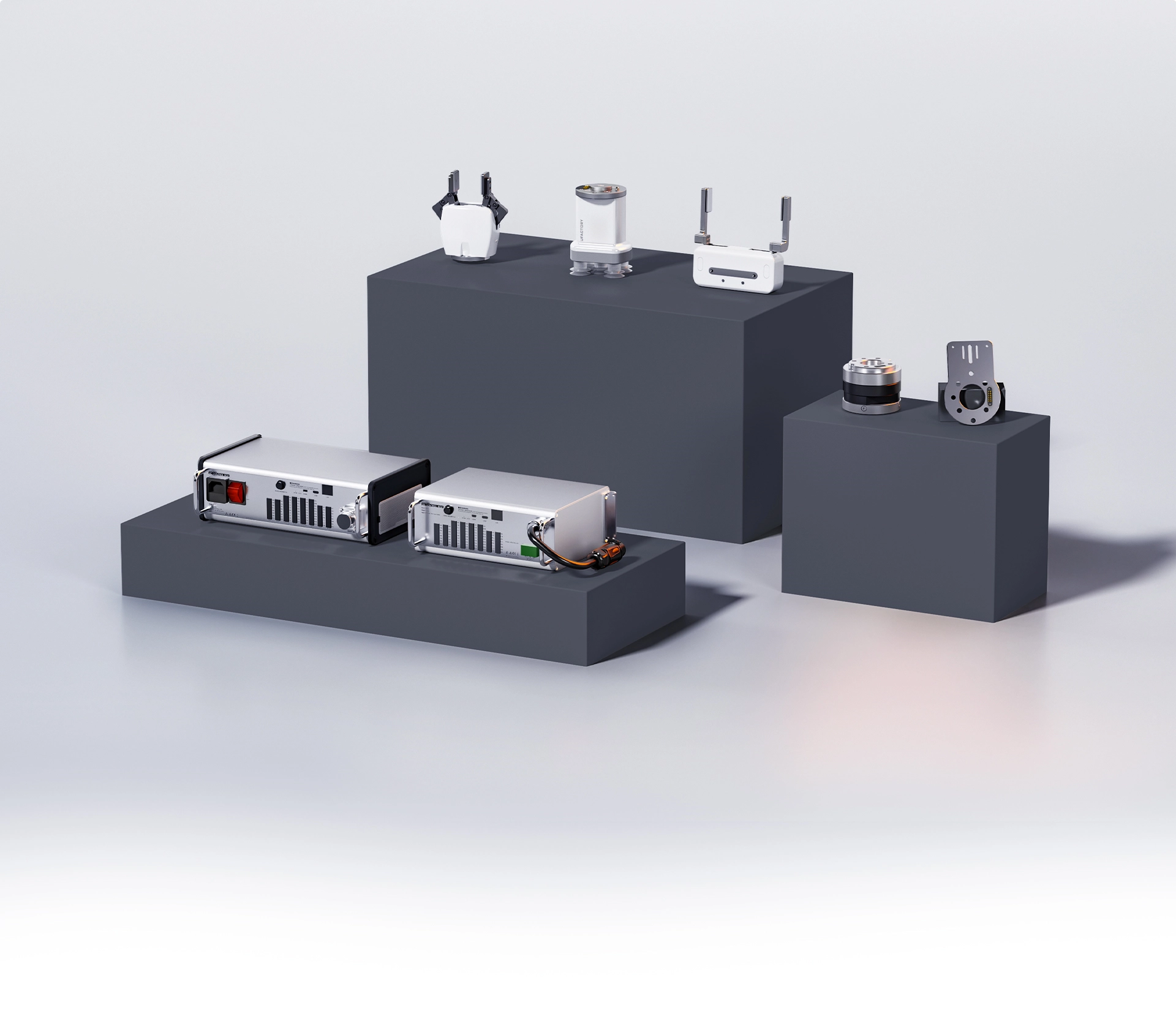

Compatible Accessories
Fully compatible with UFACTORY 850, our official accessories save setup time from hours to minutes and maximize your production uptime.

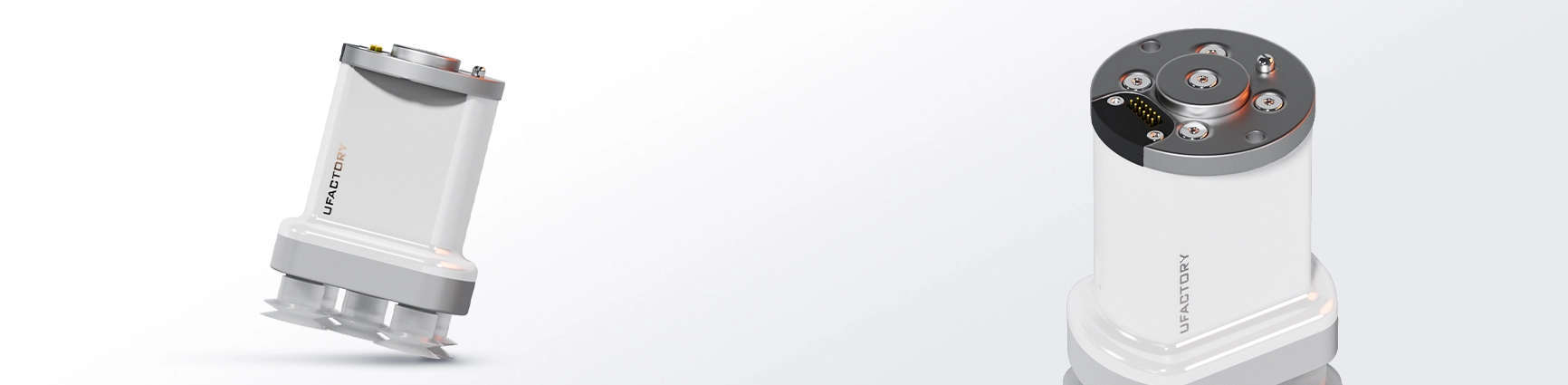

Vacuum Gripper
Designed for gently picking and placing fragile, even or uneven objects
such as cardboard, glass, sheet metal, and plastic.

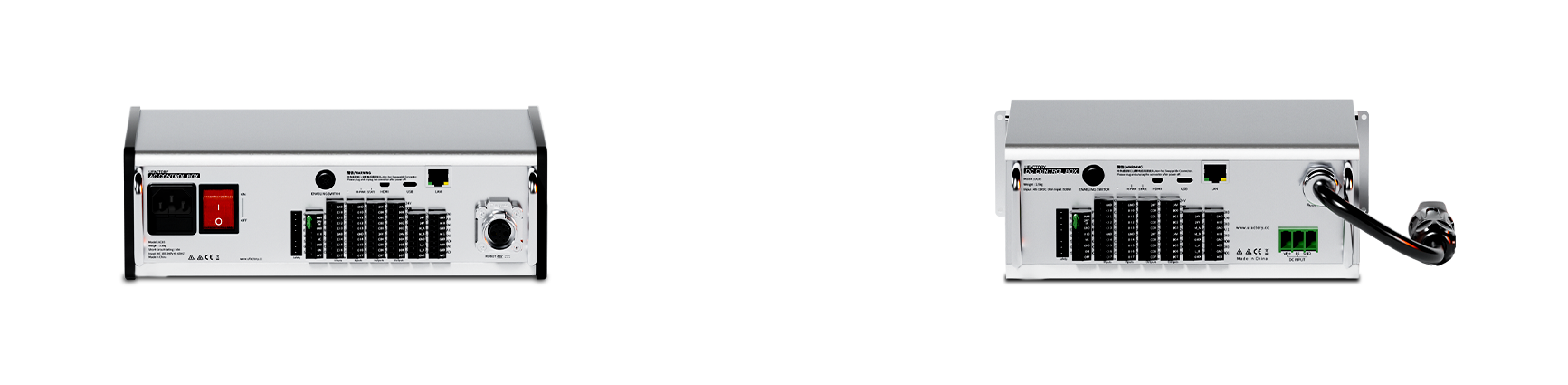

AC/DC Control Box
Provide power, communication and safety for UFACTORY 850.
Value, Beyond Cobots
Online Store
UFACTORY robots are priced up to two-thirds lower than comparable robot arms. CE and KCS certified. Shop online with transparent pricing and a full product lineup.
Support and Service
From 1-year warranty and 1-business-day response to lifetime support, your user experience is our top priority.
UFACTORY Academy
UFACTORY Academy offers tutorials from setup and programming to troubleshooting, helping you minimize downtime and boost efficiency.
Specifications
- Payload / Reach
- 5 kg / 850 mm
- Repeatability / Degrees of freedom
- ±0.02 mm / 6
- Maximum TCP speed / Weight
- 1 m / s / 20 kg

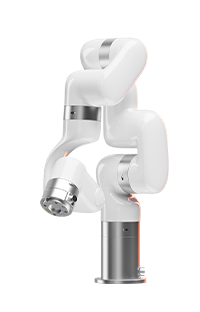

- Payload / Reach
- 3 kg / 700 mm
- Repeatability / Degrees of freedom
- ±0.1 mm / 5
- Maximum TCP speed / Weight
- 1 m / s / 11.3 kg
- Payload / Reach
- 5 kg / 700 mm
- Repeatability / Degrees of freedom
- ±0.1 mm / 6
- Maximum TCP speed / Weight
- 1 m / s / 12.5 kg

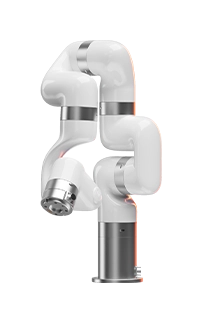

- Payload / Reach
- 3.5 kg / 700 mm
- Repeatability / Degrees of freedom
- ±0.1 mm / 7
- Maximum TCP speed / Weight
- 1 m / s / 14.3 kg
Download
More
Case Studies
See how UFACTORY cobots are successfully deployed in diverse applications—proving
their capabilities and inspiring your automation project.

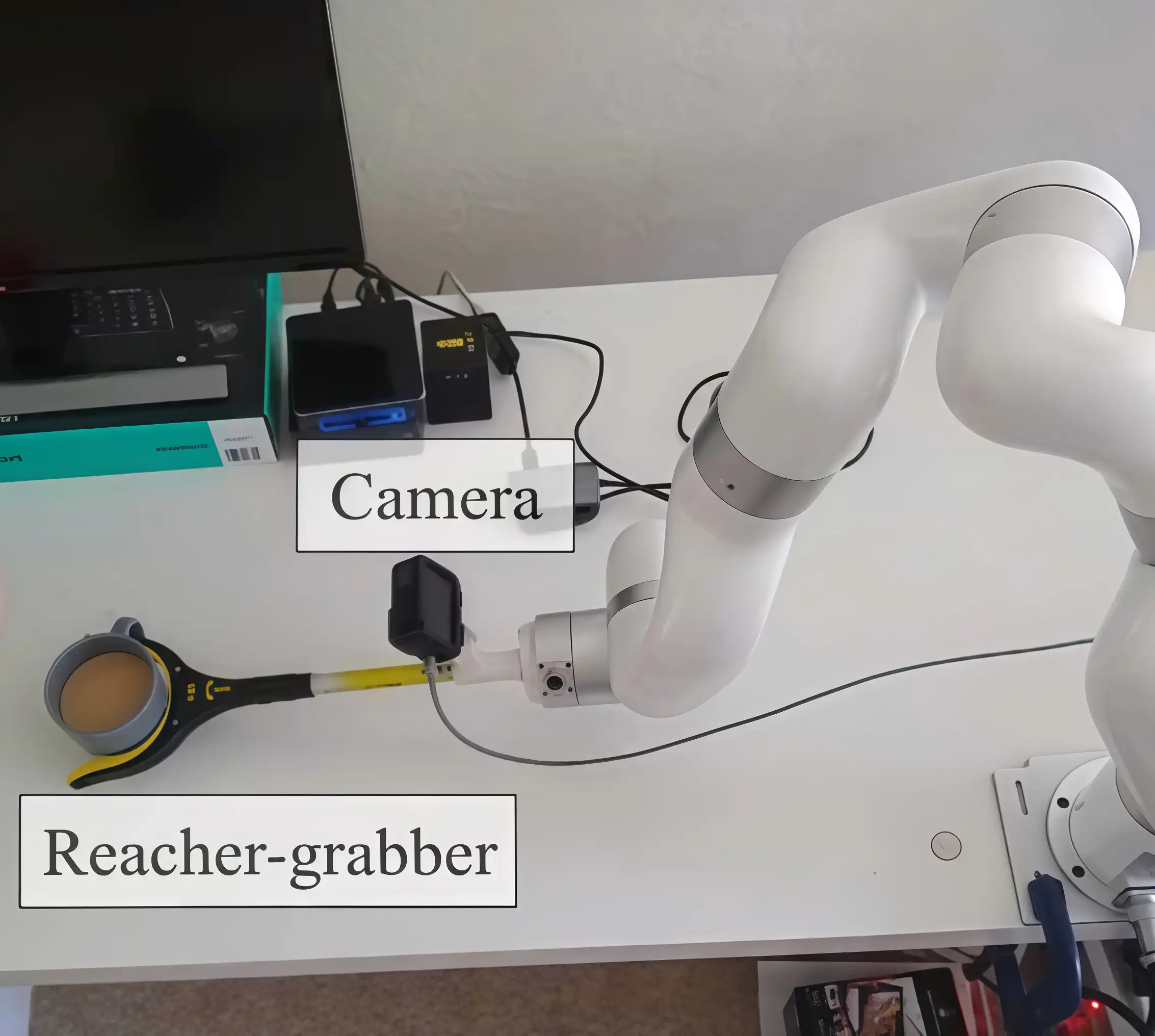

Imitation Learning Research
Researchers collected demonstration data using a commercially available assistive grabber. The trained policy achieved 87% success on pushing tasks and 62% on stacking, generalizing to objects never seen during training.

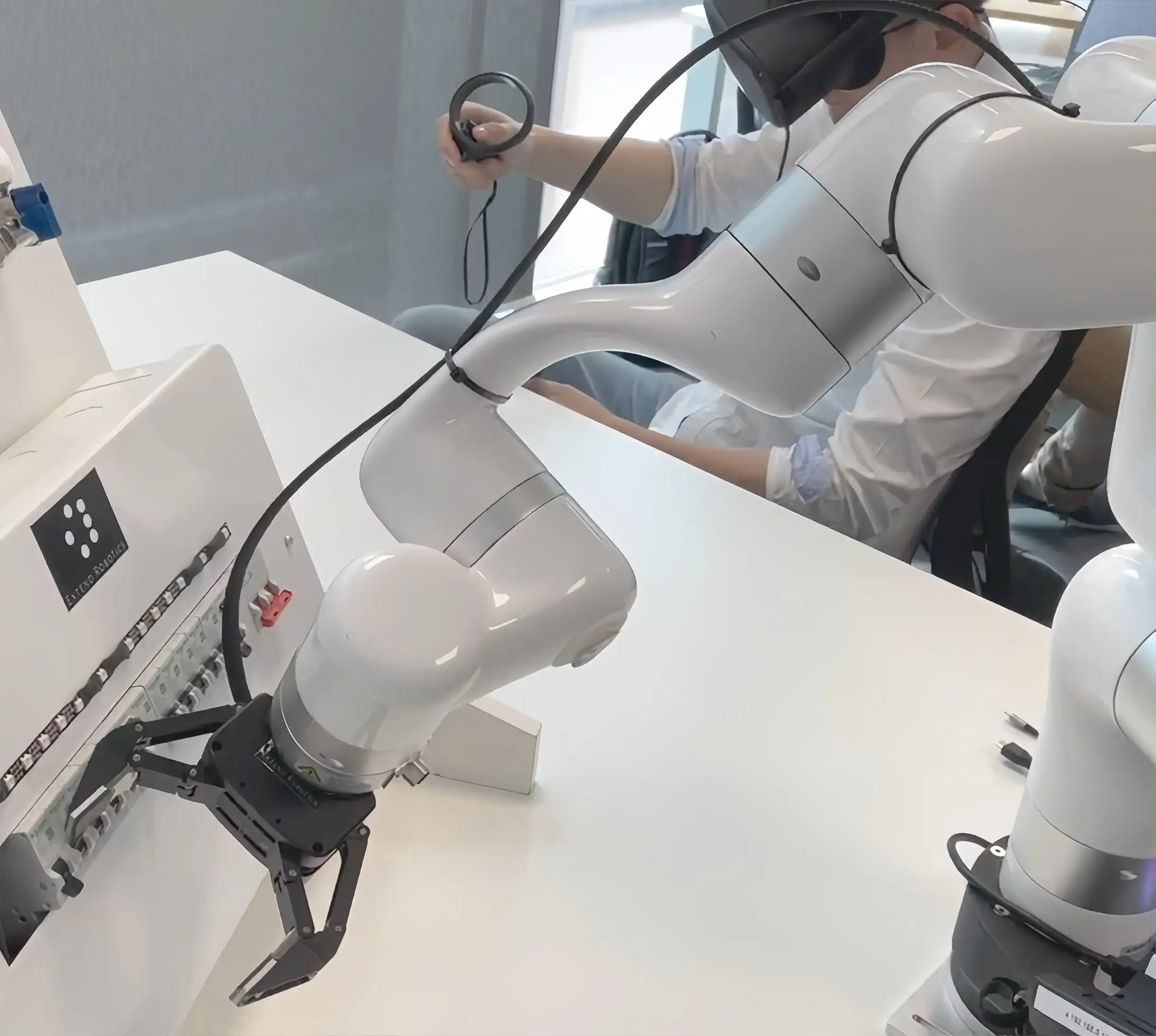

More VR Teleoperation
Accessible VR teleoperation using ROS-native xArm to solve labor shortages and safety risks in hazardous environments.

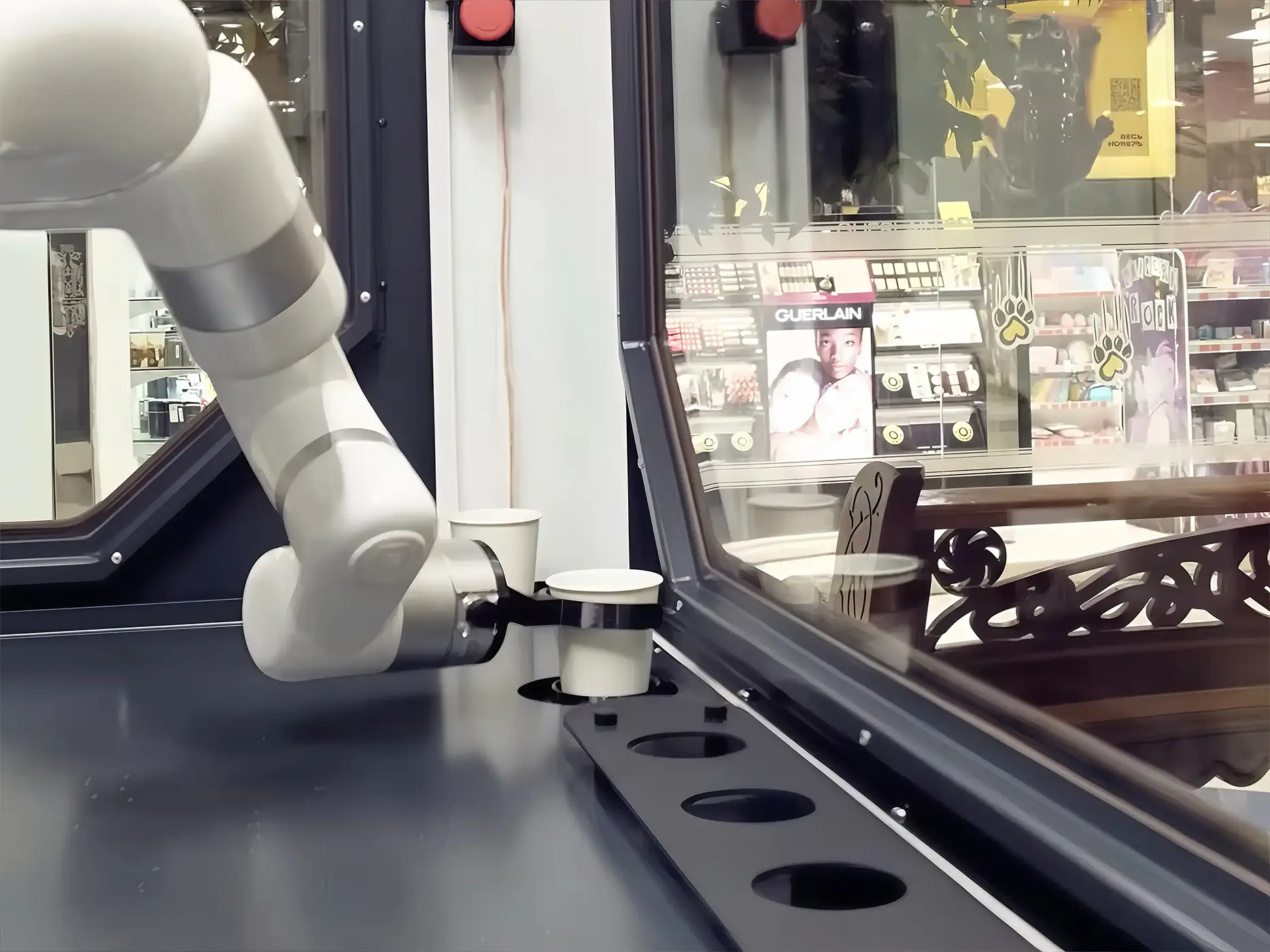

More Barista Robot
To address rising labor costs, Botlegger chose UFACTORY Arm for its lightweight design and intuitive programming. The xArm fits easily into compact retail environments, operates 24/7, replaces two workers, and handles up to 250 orders daily while delivering strong ROI.

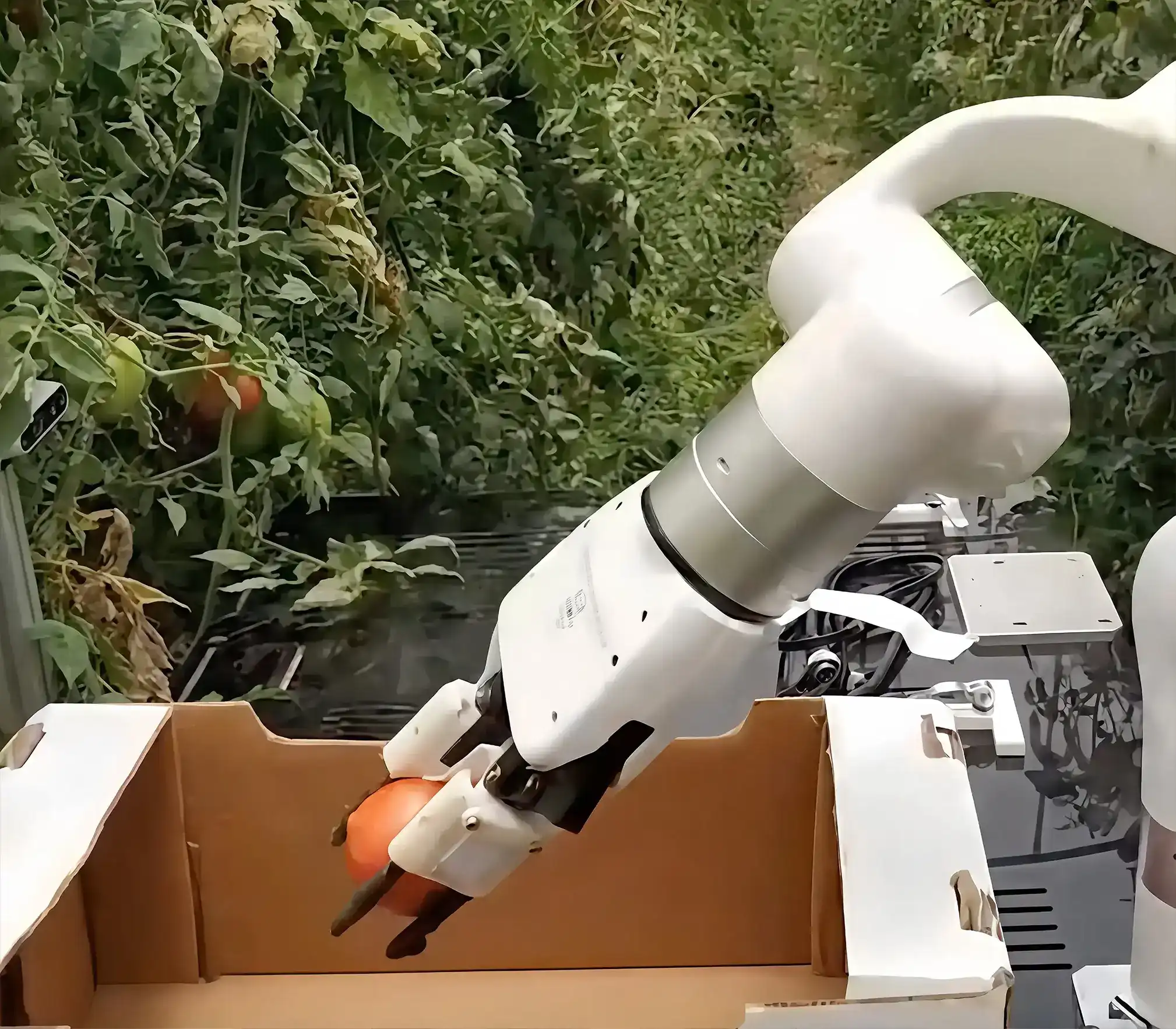

More Tomato Harvesting
TsukArm Robotics deploys UFACTORY xArm in greenhouse environments, enabling precise autonomous tomato harvesting to address agricultural labor shortages and boost crop yield efficiency.

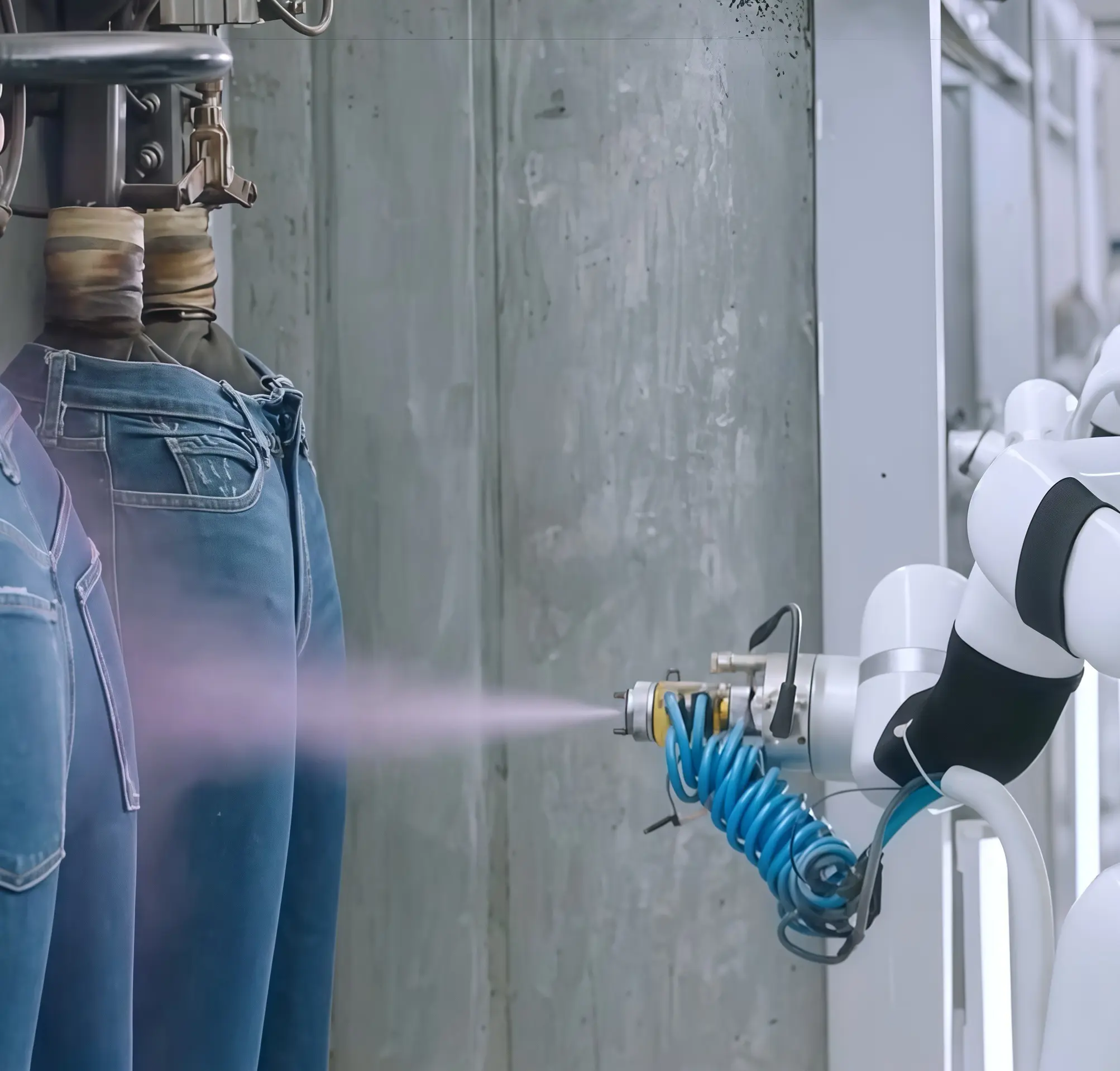

More Automated Denim Spraying
AGI Denim deploys UFACTORY xArm cobots on an automated spray-coating line, delivering precise and consistent denim finishing.

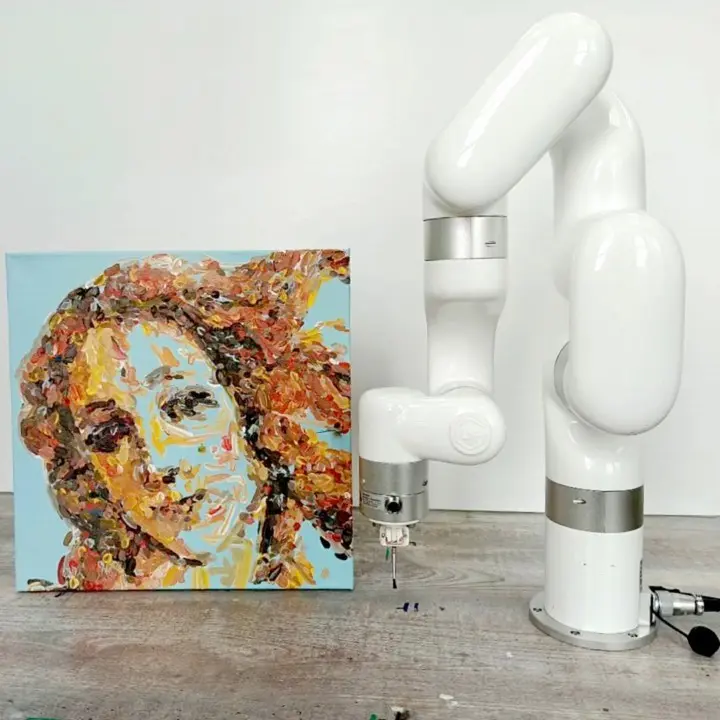

More Robotic Painting
Robohood Inc. uses UFACTORY xArm with AI and computer vision to create neuroimpressionist paintings. The robot artist paints with real brushes, acrylics, and oils on canvas, turning AI-generated art into beautiful physical artworks.

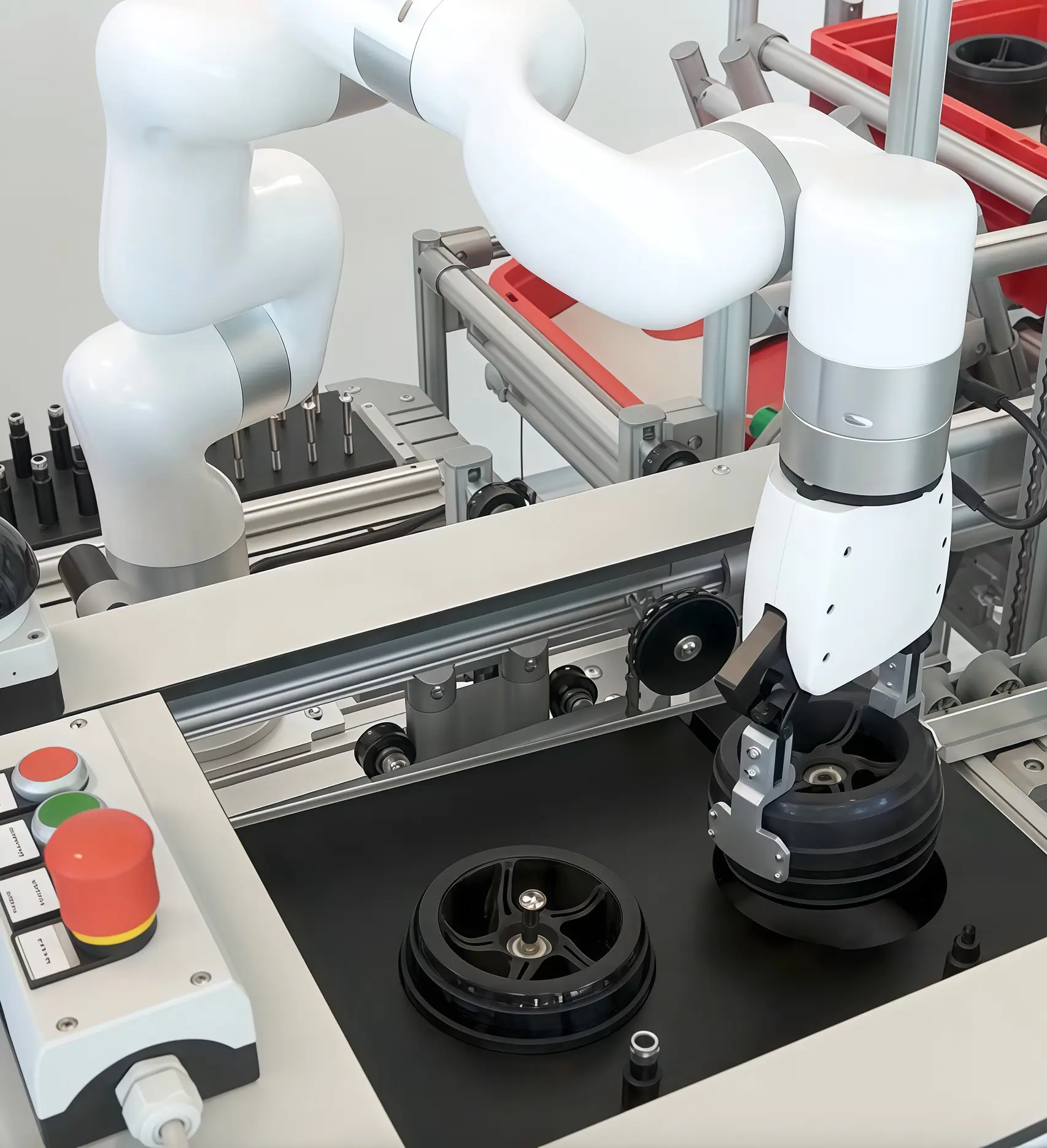

More Robotics Training
CETPM integrates the xArm into 'Karakuri Kaizen' workshops, providing German SMEs with affordable, easy-to-program collaborative robotics training to bridge the gap between traditional lean methods and modern automation.

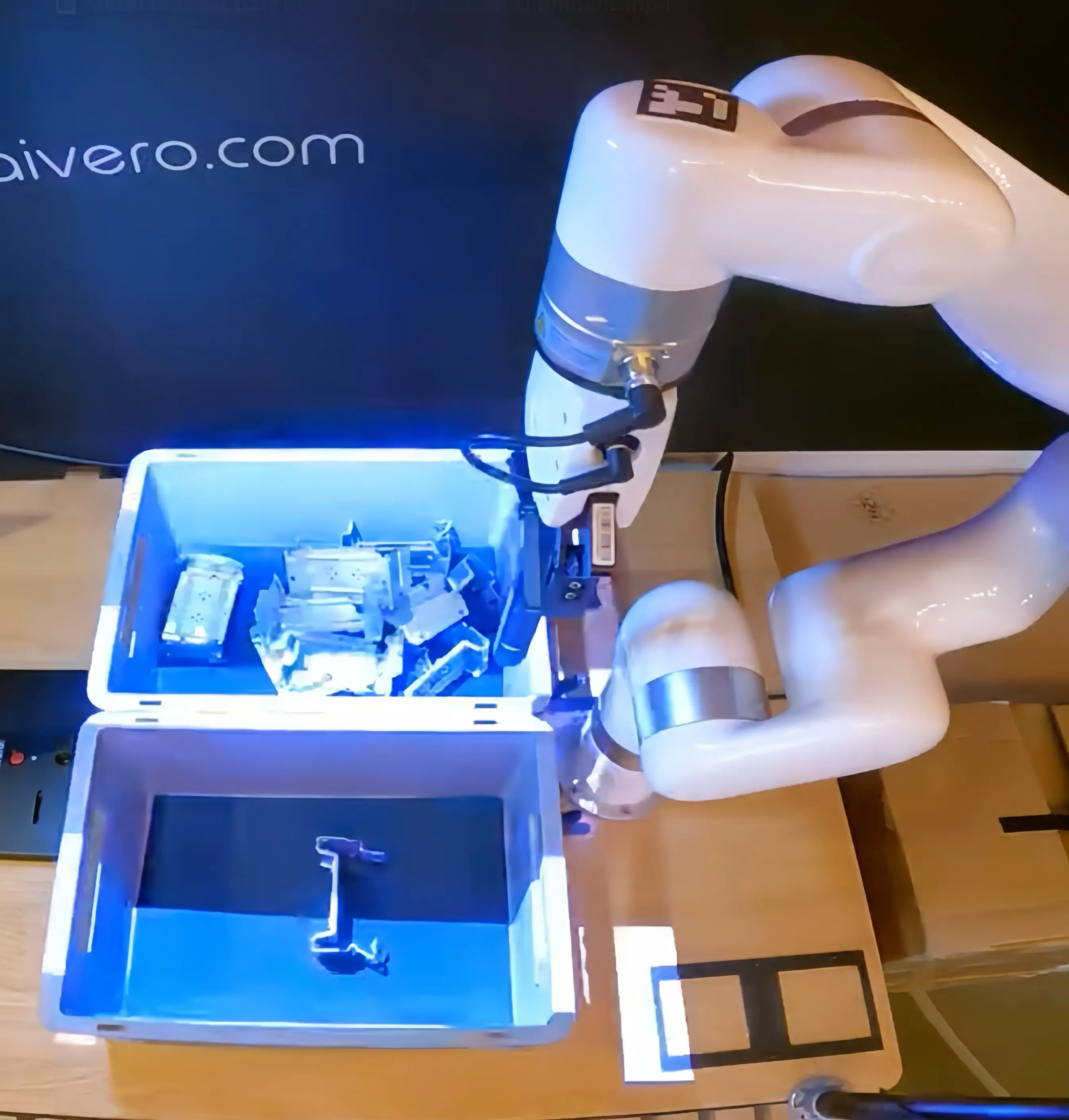

More Bin Picking
Aivero combines 3D vision and cloud-based ML with the cost-effective xArm 6, enabling economically viable bin-picking automation for under $10k to tackle global labor shortages.
More Not sure which model fits your workflow?
Our team will match the right robot and configuration to your needs.
