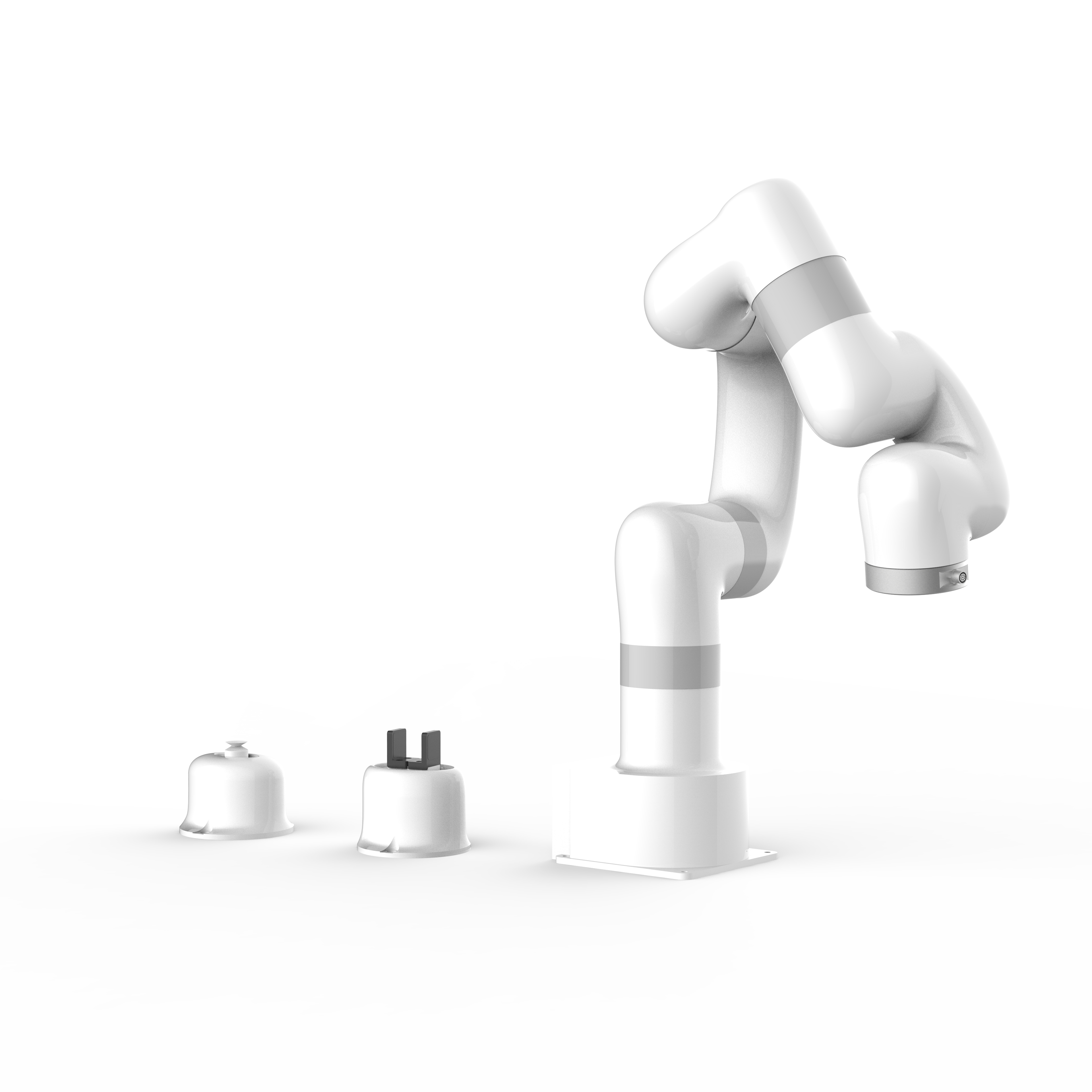

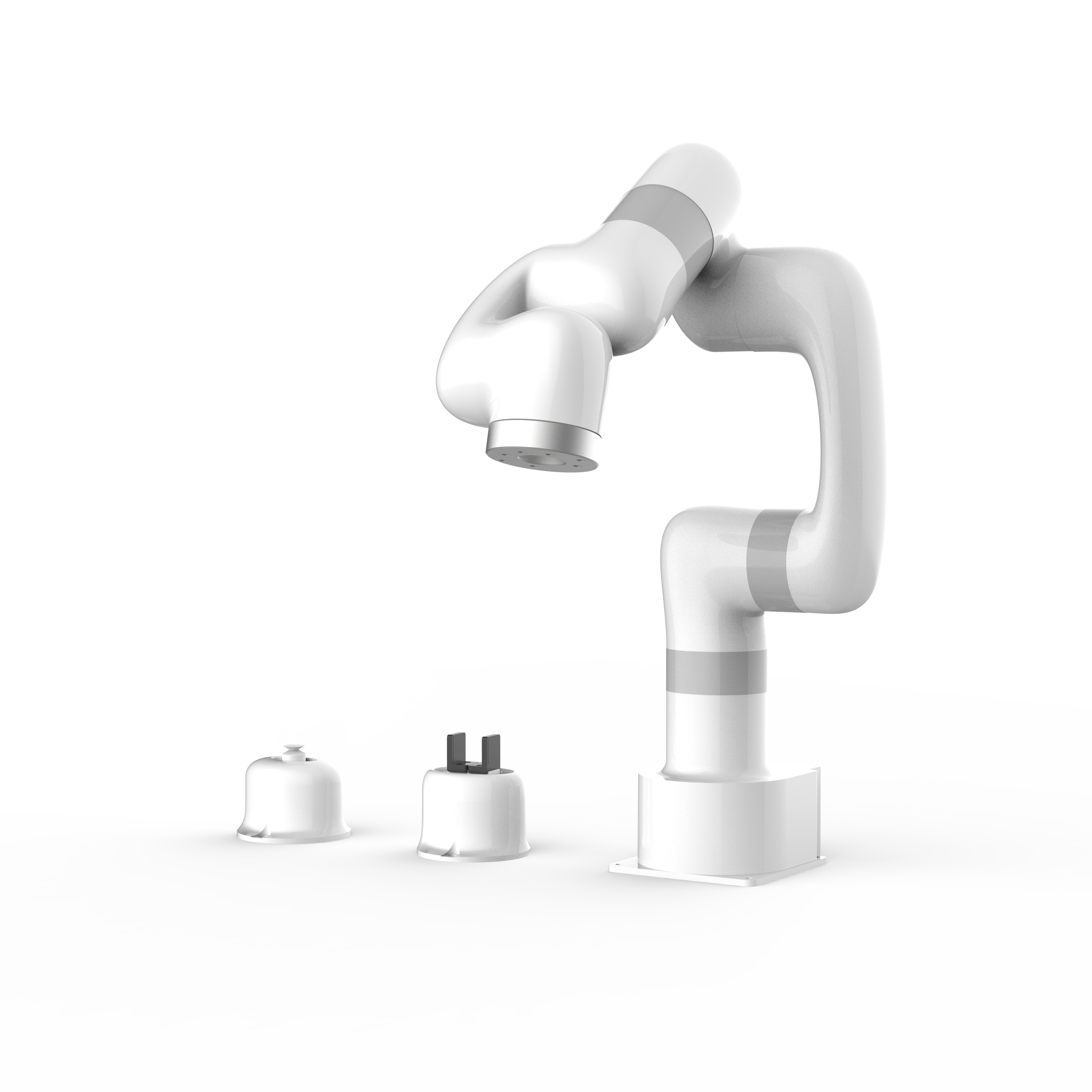

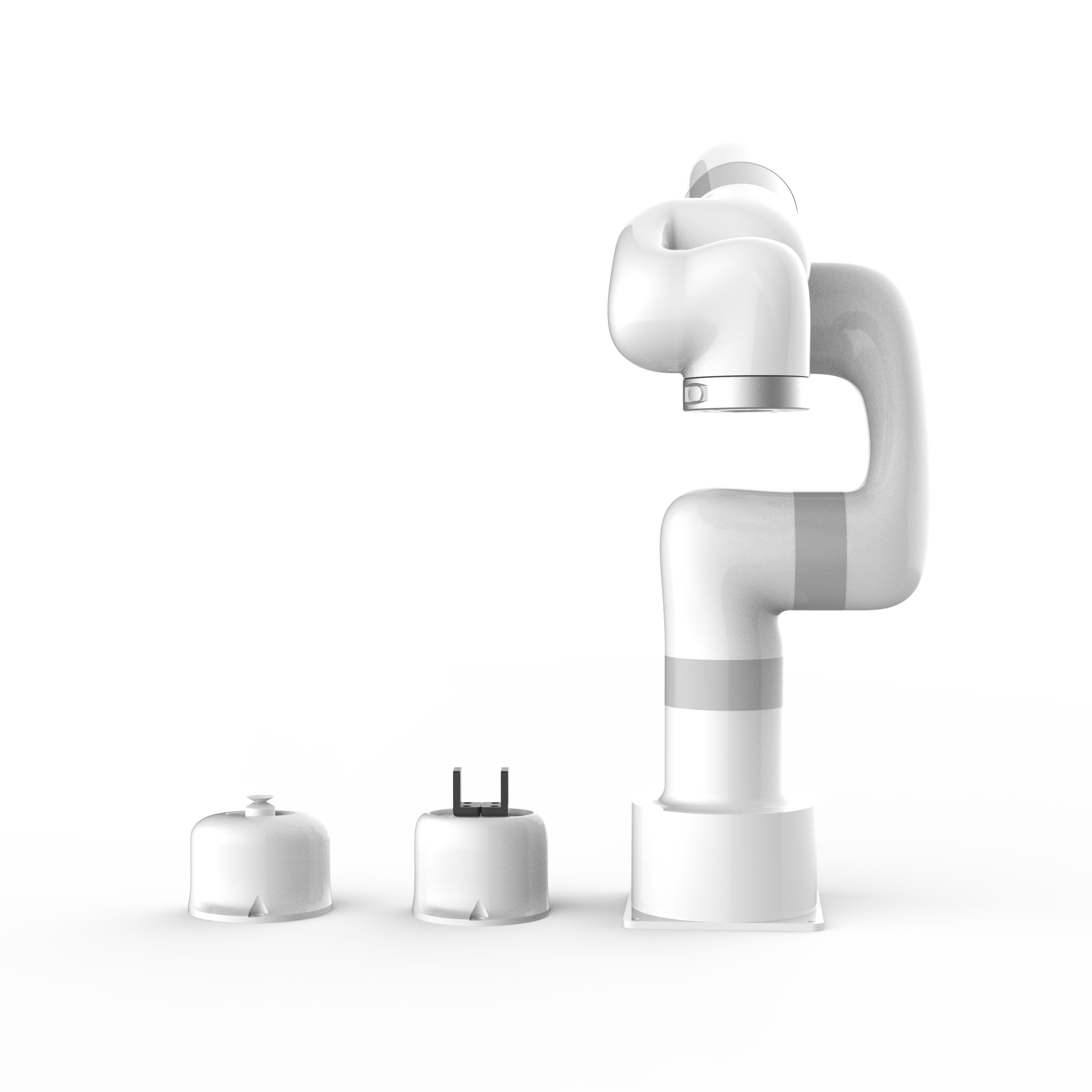

UFACTORY Lite 6 Kit

$3,639.00

6-Axis
Payload 600 g
Reach 440 mm
Repeatability 0.5 mm
Max Speed 500 mm/s

What’s in the box:

Lite 6 robot*1
Gripper Lite*1
Vacuum Gripper Lite*1
Integrated Control Box
Ethernet Cable

Leadtime 2-4 weeks.
Tips Terms of trade is EXW, which means you have to deal with the import tariff by yourself. The goods would be shipped from China.

Why Lite 6 ?

UFACTORY Lite 6 has 600 g payload and 0.5 mm repeatability. It is the most affordable 6 axis table-size robot arm on the market. It equips Direct-Drive motor and harmonic drive, which balance durability and cost. Lite 6 perfectly fits space saving tasks which are not high-accuracy sensitive.

Features

Graphical Programming

Hand Teaching

Collision Detection

Self-Collision Free

Safety Boundary

Trajectory Recording

Offline Task

Python

ROS/ROS2

3D Simulation

Robots Comparison

Product	Lite6	xArm 5 Lite	xArm 6	xArm 7
Payload	600 g	3 kg	5 kg	3.5 kg
Reach	440 mm	700 mm	700 mm	700 mm
Degree of freedom	6	5	6	7
Repeatability	±0.5 mm	±0.1 mm	±0.1 mm	±0.1 mm
Maximum Speed	500 mm/s	1 m/s	1 m/s	1 m/s
Weight（robot arm only）	7.2 kg	11.2 kg	12.2 kg	13.7 kg
