UFACTORY 850

The most powerful robot with industrial grade performance

Ideal for:

○ Glambot
○ Welding
○ Screwdriving
○ Robot Vision
○ Industrial Production

US$8,999.00

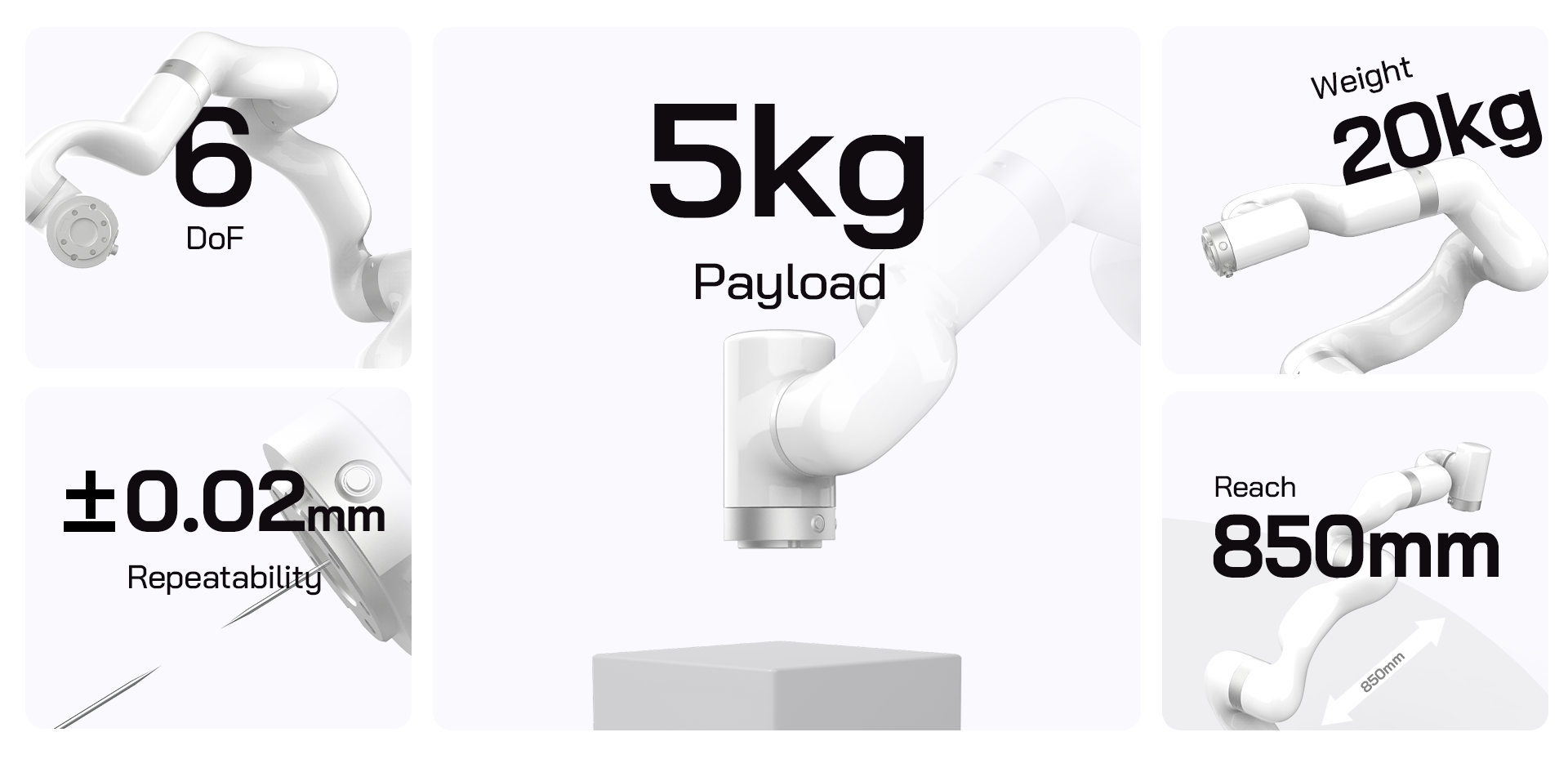

Performance

BRIEF INTRODUCTION

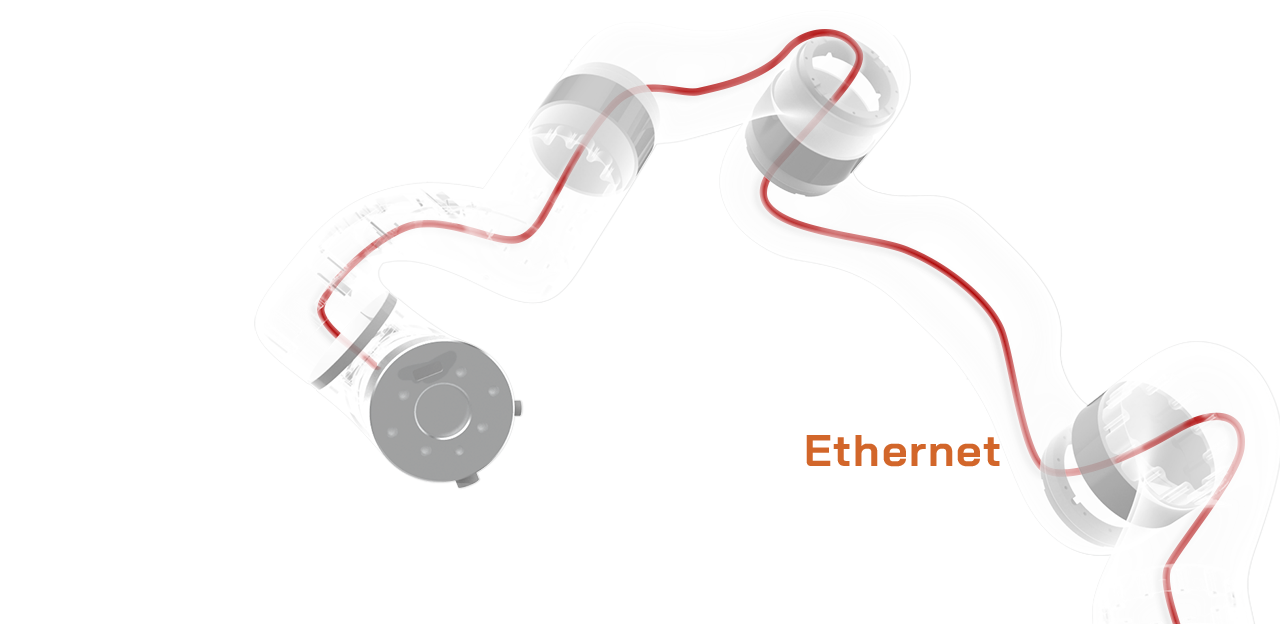

Standalone Ethernet Cable Meets All Your Needs

  • A physical internal 100M ethernet cable enhances your system stability a far greater step.
  • Standard CAT5 ethernet cable, which is compatible with most 3rd party vision devices.
  • No ethernet cable needed? Try it as a physical signal cable.

Durable Collaborative Robots with Easy Deployment

  • Industrial-grade harmonic drive and servomotors with 17 bit encoder guarantee 24/7 working as well as ±0.02 mm repeatability.
  • Crafted from carbon fiber and aluminum, the system weight is reduced by 50%. The lighter, the easier deployment.

Designed for both mobile platforms and your workbench

  • The AC control box contains an AC-DC adapter inside, 100-240V AC is all ready to go.
  • The DC control box supports 48-72V wide inputs, it perfectly fits the battery system on your mobile platform.

Flexible Deployment With Safe Feature

  • Hand teaching, space-saving and easy to re-deploy to multiple applications without changing your production layout. Perfectly for recurrent tasks.
  • Collision detection is available for all of our cobots. Your safety is always the top priority.

Graphical Interface For Beginner-Friendly Programming

  • Compatible with various operation systems, including macOS and Windows.
  • Web-based technology compatible with all major browsers.
  • Drag and drop to create your code in minutes.

Powerful And Open Source SDK At Your Fingertips

  • Fully functional open-source Python/C++ SDK provides more flexible programming.
  • ROS/ROS2 packages are ready-to-go.
  • Example codes help you to deploy the robotic arm smoothly.
850

Seamless Integration With Official Accessories

Our robot arm can equip with a range of accessories to easily achieve the application you need.
  • Gripper
  • Vacuum Gripper
  • BIO Gripper
  • 6 Axis Force Torque Sensor
  • Linear motor

Beginner-friendly

Support

Support

​Dedicated online support to figure out the proper way to run the robot.

Realtime Chat

Realtime Chat

Realtime chat support on you laptop or mobile phone.

Plug & Play

Plug & Play

Plug-and-play. Unbox, set-up, calibrate. No technician needed.

1 year warranty

Warranty

1 year warranty
Minimum 3 years of full-time use

SPECS

Working Range

Working space of UFactory 850 (unit: mm)
Note: The following working range diagrams are only for safety assessment.

ufactory 850 working range
ufactory 850 working range

Dimension

Robot tool head

Ufactory 850 tool head

Robot base mounting (mm)

Ufactory 850 tool head

Comparison

UFactory 850 xArm 5 xArm 6 xArm 7
Payload 5 kg 3 kg 5 kg 3.5 kg
Reach 850 mm 700 mm 700 mm 700 mm
Degrees of freedom 6 5 6 7
Repeatability ±0.02 mm ±0.1 mm ±0.1 mm ±0.1 mm
Maximum Speed 1 m/s 1 m/s 1 m/s 1 m/s
Weight(robot arm only) 20 kg 11.2 kg 12.2 kg 13.7 kg

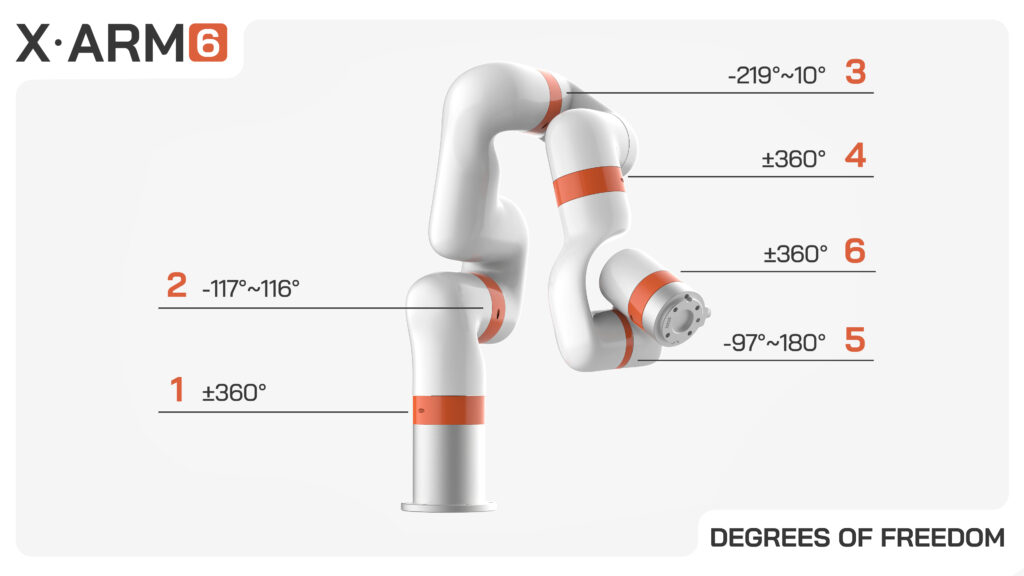

UFactory 850 xArm 5 xArm 6 xArm 7
Maximum Speed 180°/s 180°/s 180°/s 180°/s
Joint 1 ±360° ±360° ±360° ±360°
Joint 2 -132°~132° -118°~120° -118°~120° -118°~120°
Joint 3 -242°~3.5° -225°~11° -225°~11° ±360°
Joint 4 ±360° -97°~180° ±360° -11°~225°
Joint 5 -124°~124° ±360° -97°~180° ±360°
Joint 6 ±360° ±360° -97°~180°
Joint 7 ±360°

Hardware

850 Robot Specs
*Ambient Temperature Range 0-50℃
Power Consumption Typical 240 W, Max 1000 W
Input Power Supply 48VDC 20.8A
Footprint Ø 190 mm
Materials Aluminum, Carbon Fiber
Base Connector Type M8*4
ISO Class Cleanroom 5
Robot Mounting Any
End Effector Communication Protocol Modbus RTU
End Effector I/O DI*2/DO*2/AI*2/RS485*1
Communication Mode Ethernet
Product AC Control Box
Input 100-240VAC 50/60Hz
Output 48VDC 20.8A
Weight 4.8kg
Dimension(L*W*H) 345*135*101mm
Control Box IO CI*8+DI*8
(Digital Input)
CO*8+DO*8
(Digital Output)
Communication Mode Ethernet, RS485 Master*1

The control box is included in default.

Compatibility

Interface

Windows 10, macOS 10.10 or later, Ubuntu 16.04 or later.

API Compatibility

Interfaces with any product that has an API
Our robot API is open-source and users can make adjustments to the software as needed to interface with other products. While all integrations are possible, they all require custom code work i.e. most customers will need to write custom libraries and install software packages that are not shipped with the robot.
Open-source APIs GitHub.
Learn more

Hardware Compatibility

Interfaces with any product that has
12~24V general purpose inputs/outputs
ModBus RTU (RS485)

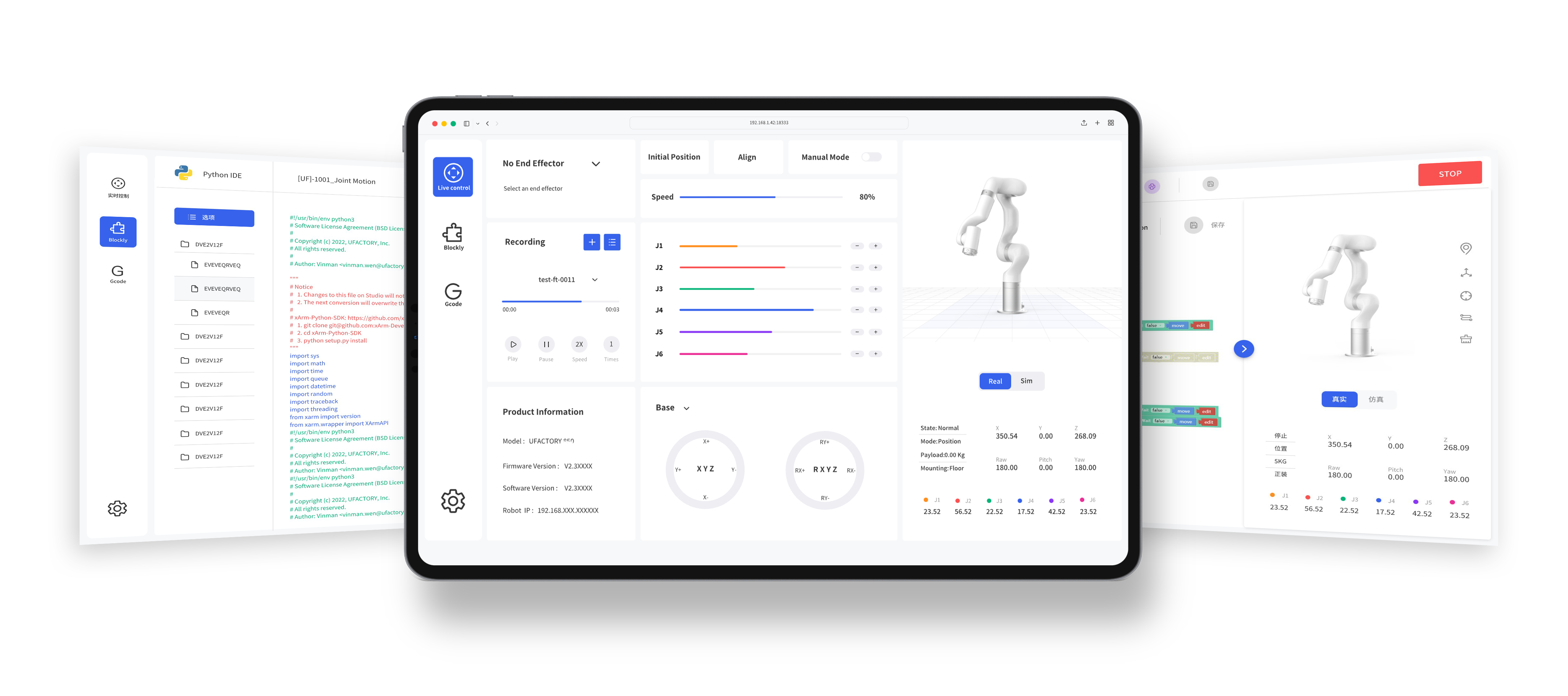

Software

UFACTORY Studio is a web-based software running inside the control box, which means no additional installation needed before running the robot. Any computer with a browser has the access after 1 minute hardware connection.

xArm studio

Service & Support

Warranty

1-year warranty against manufacturer defects
Stress tested to last a minimum of 3 years of full-time use

Certificates

Certifications Complete(CE)

Q&A

How long is the lead time?

The lead time of UFACTORY 850 robot is 2-3 months.

Demo videos

UFACTORY 850

The most powerful robot with
industrial grade performance

From US$8,999
