Part Insertion & Mating
Background

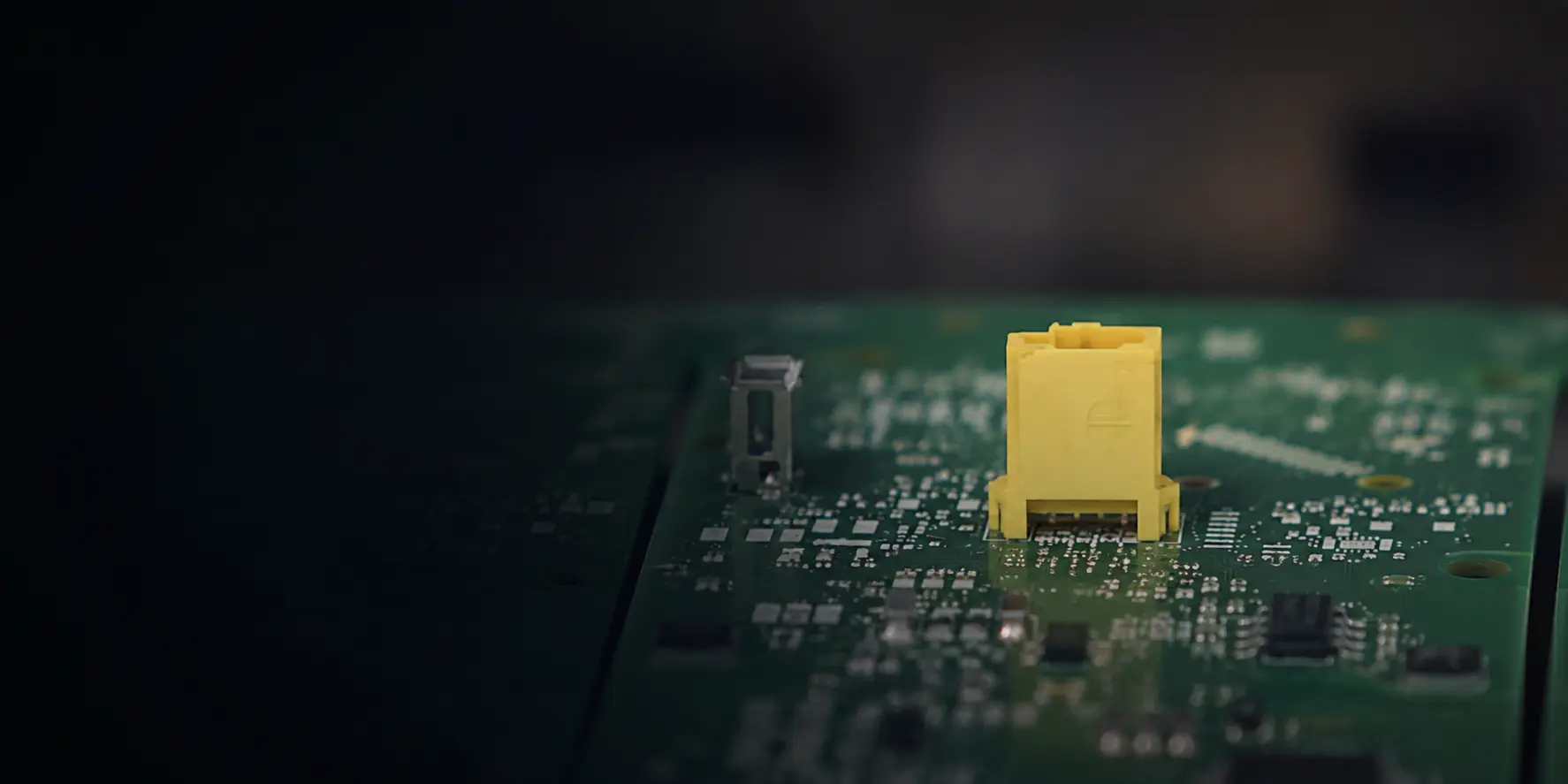

Insertion, shaft-hole mating, and snap fitting are common in electronics, automotive, and consumer product assembly. Part tolerances and small misalignments can cause jamming or scratching, so compliant assembly is needed to avoid damage and low yield.
Industry Pain Points
Jamming, Force Variation, and Tight Tolerances
Small part or gripping offsets can cause jamming, scratches, or damage during rigid insertion.
Manual assembly force varies and fatigue makes quality unstable.
Precision, tight-tolerance mating is hard to solve with rigid automation alone.
01
Cost and ROI
Competitive hardware cost gives small and midsize manufacturers and integrators clear advantages in total procurement, integration, and project payback.
02
Plug-and-Play Tooling
The ISO flange and standard I/O simplify integration of grippers, press-fit tools, and other assembly end effectors.
03
Open Development
ROS/ROS2 packages and Python/C++ SDKs help integrators develop process-specific assembly logic and secondary integration.
04
Vision Integration

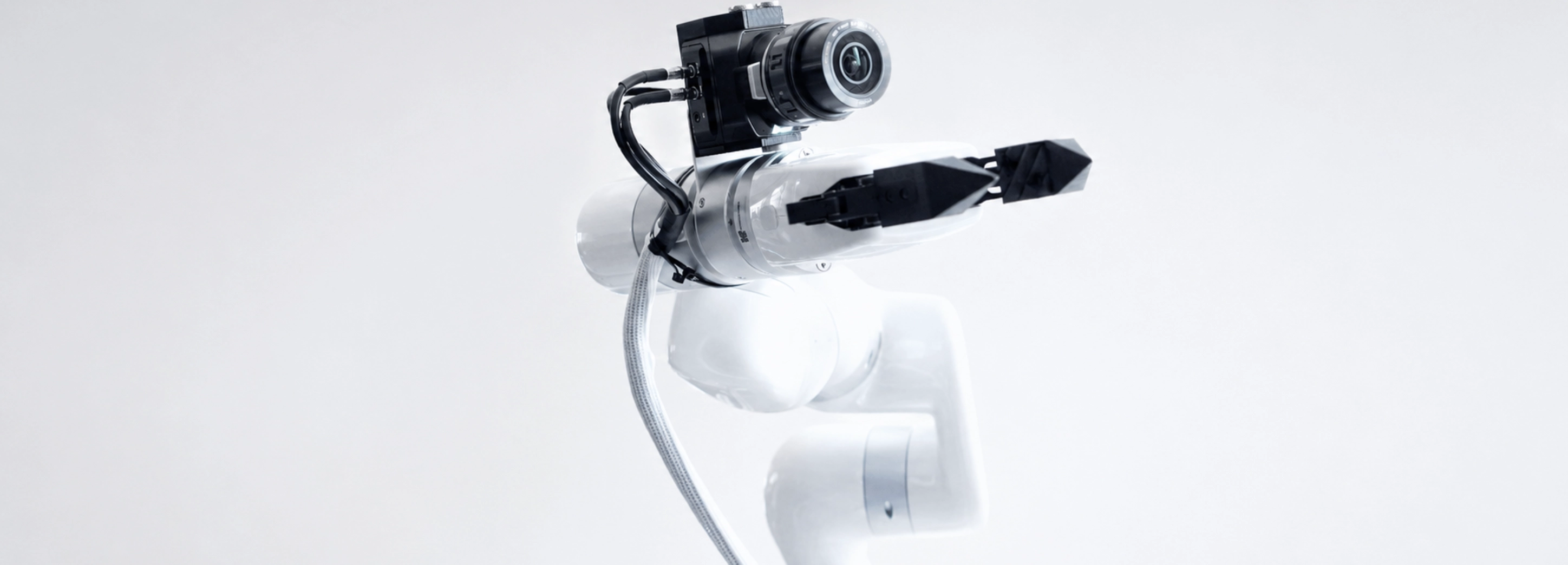

The UFACTORY 850 connects to 2D/3D vision for part and hole localization on flexible lines with incoming position variation.
05
High-Precision Positioning
±0.02 mm repeatability helps align parts to target holes or assembly references, reducing jams caused by positioning error.
06
Flexible Changeover
Lightweight construction and simple programming support fast station transfer, product changeover, and adaptation to varied assembly tasks.
07
Compliant Force Control
With an optional six-axis force/torque sensor, the robot can detect insertion resistance and support micro-adjustment for tight-tolerance or fragile parts.
08
Process Consistency
Stable force and rhythm help reduce manual variation, misalignment, scrap, and inconsistent assembly quality.
