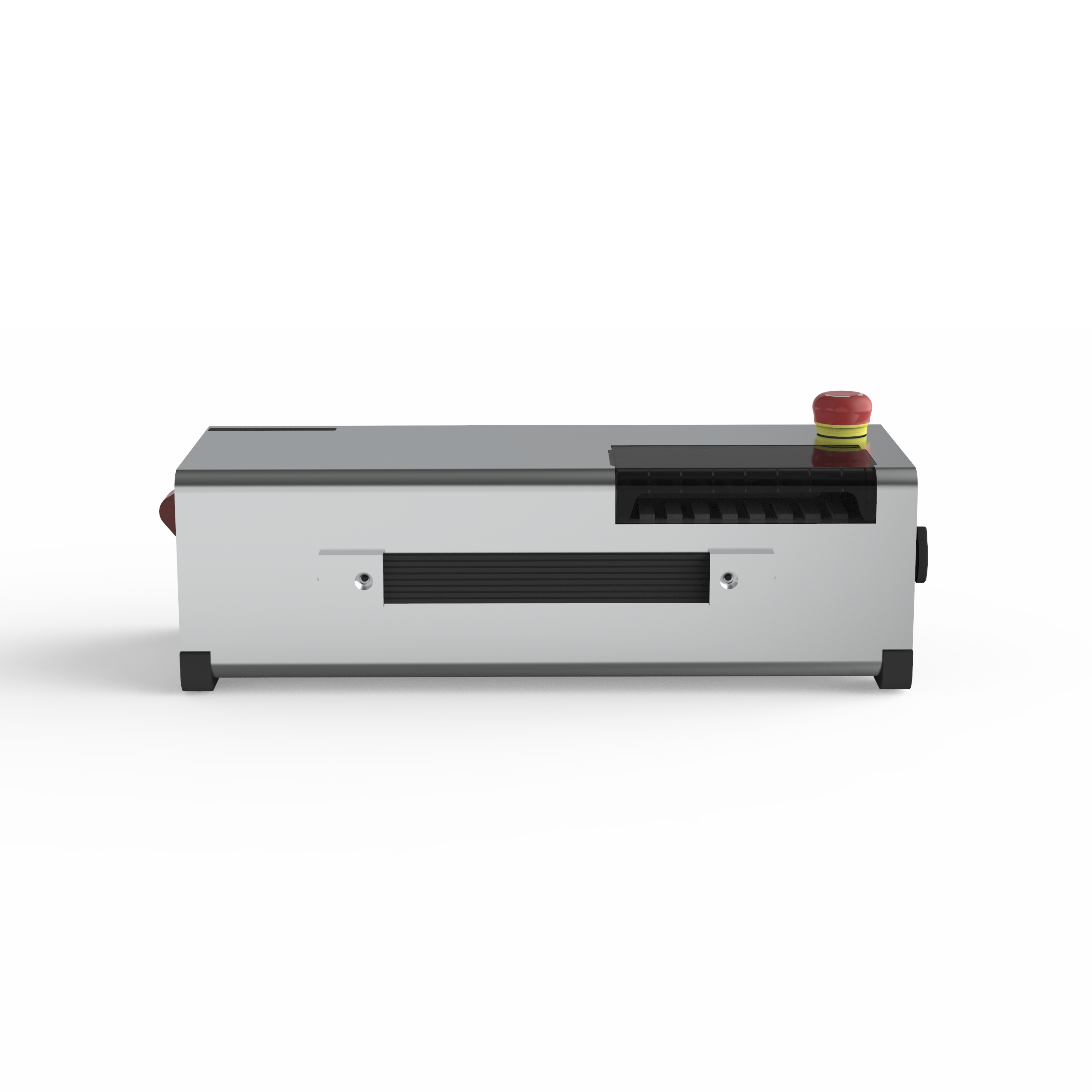

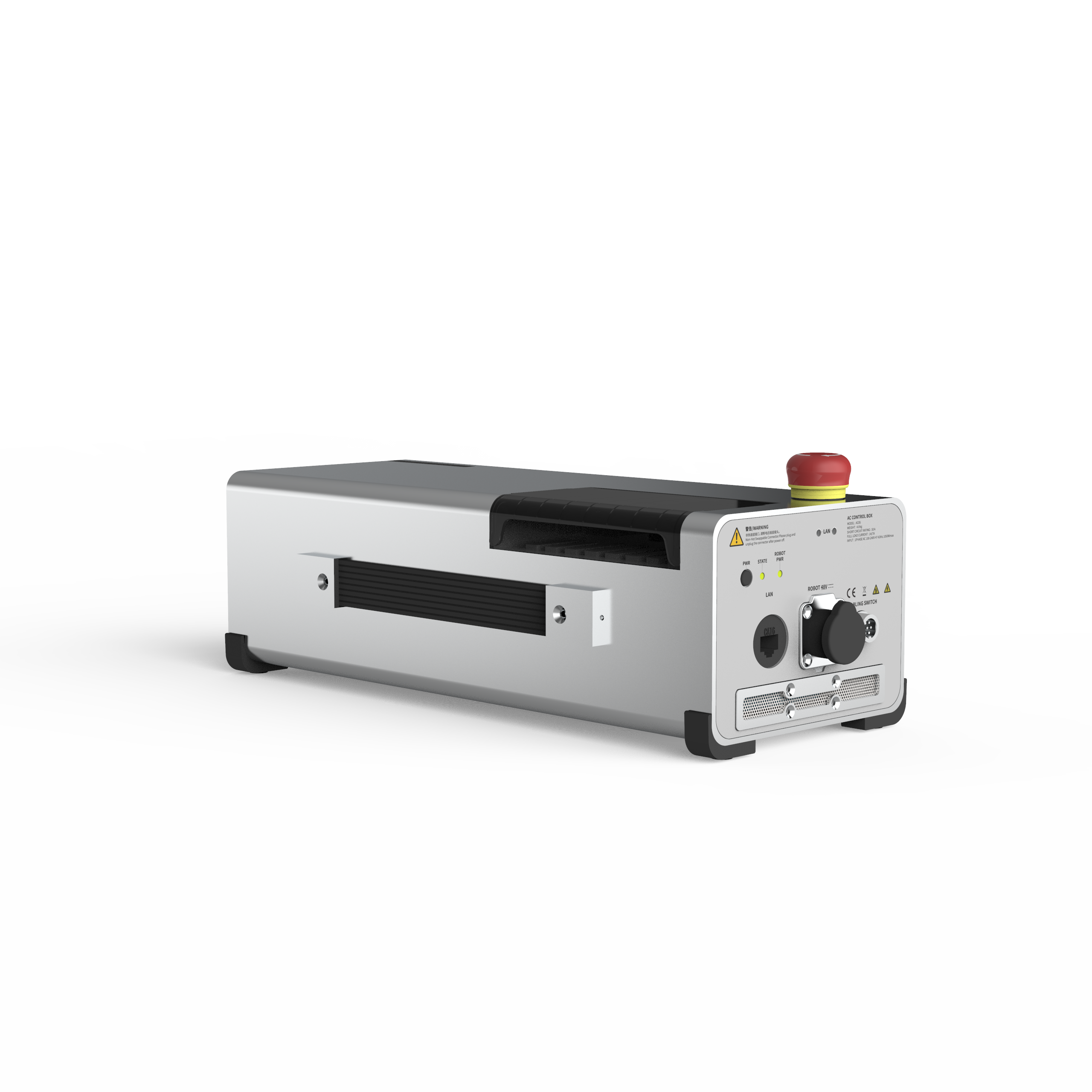

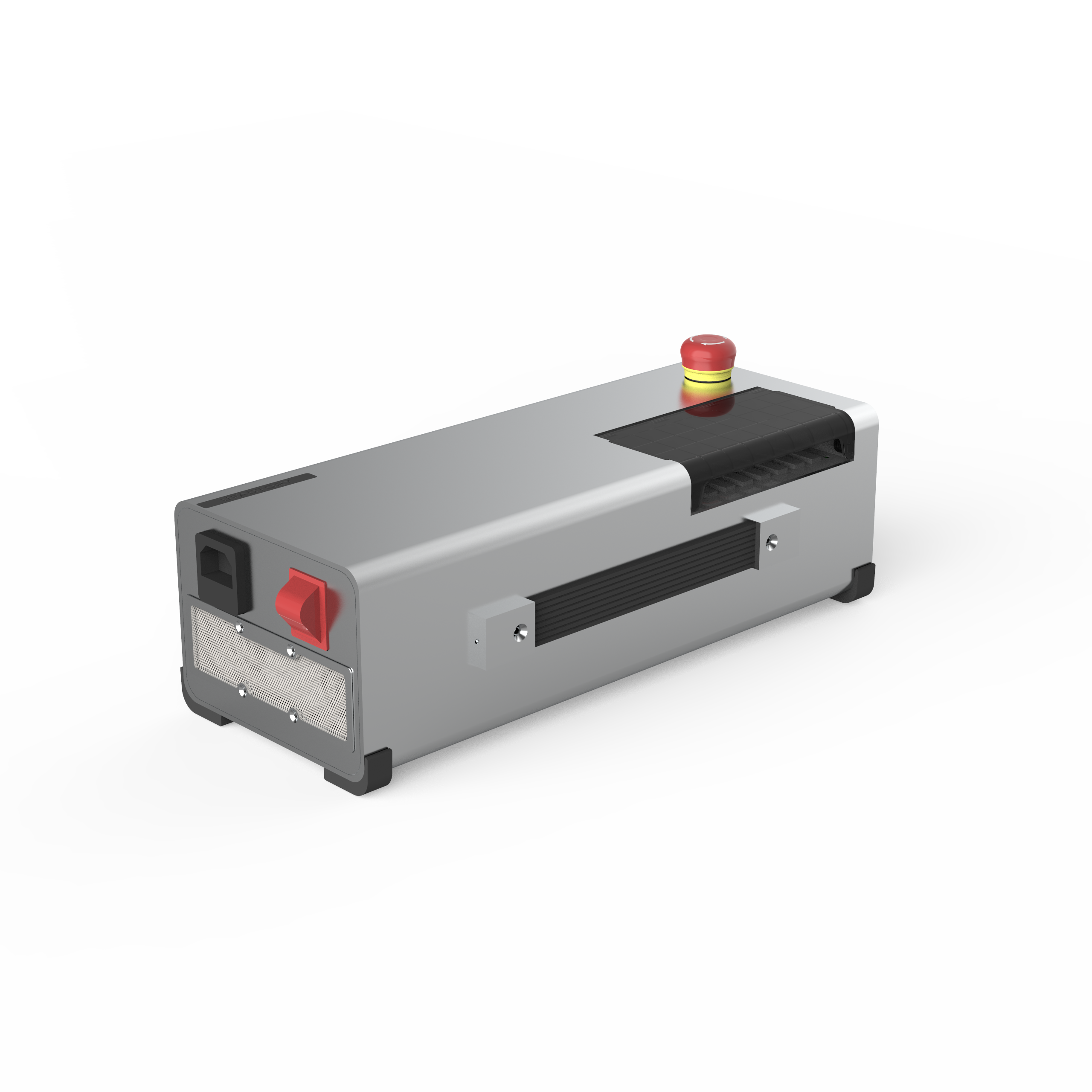

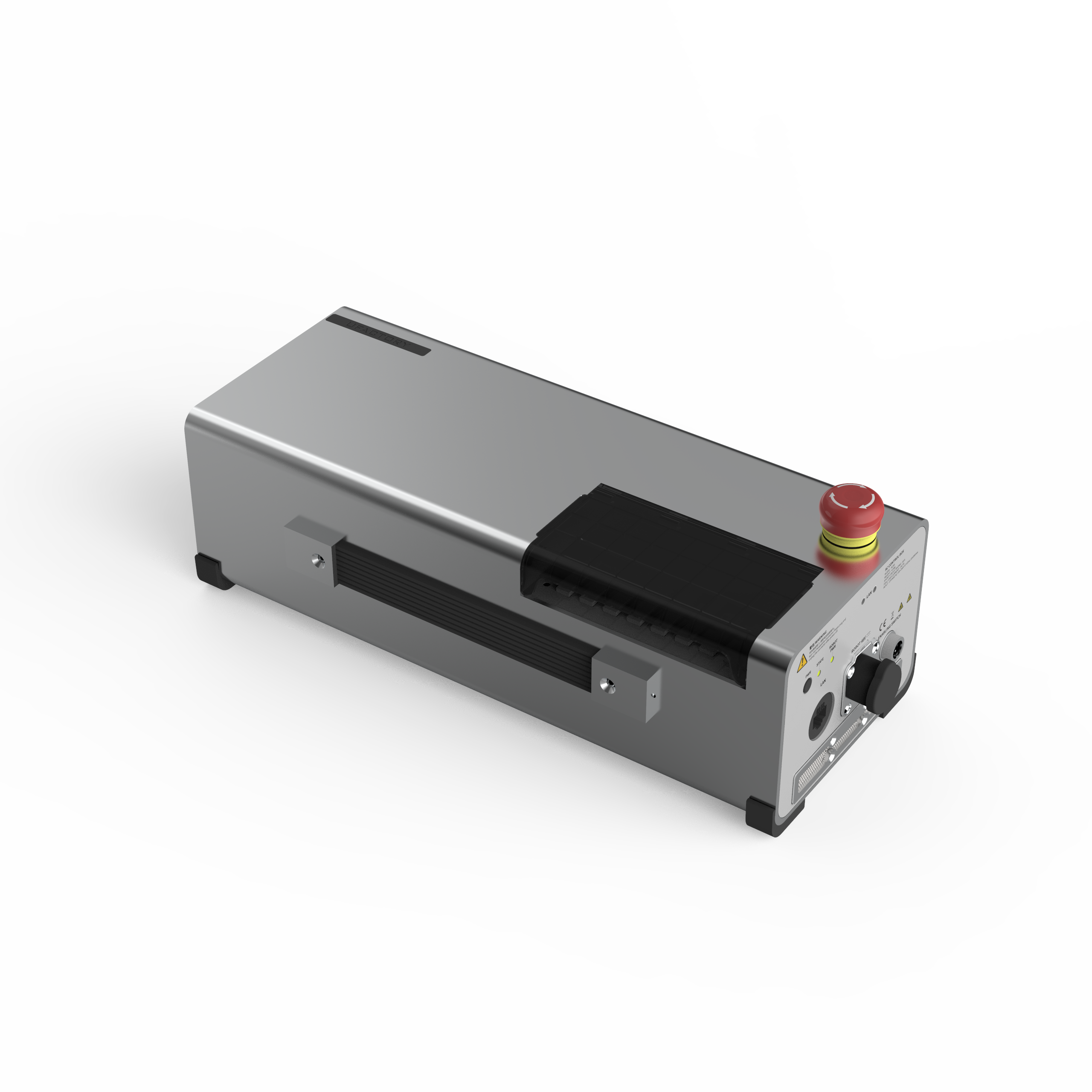

Why UFACTORY 850 AC Control Box ?

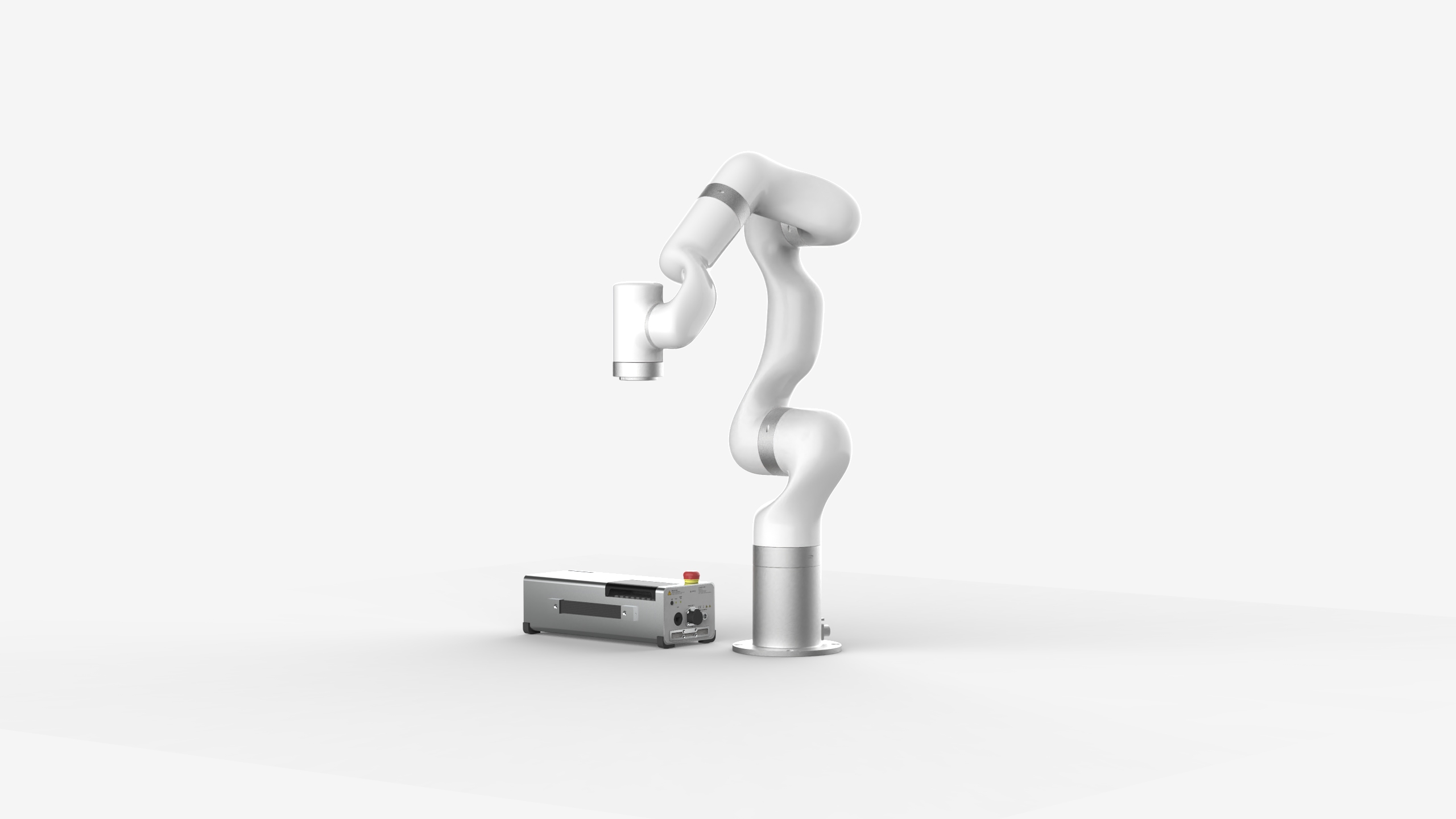

Discover the AC Controller’s compact and lightweight design. Serving as the high-efficiency core that integrates power, safety, and communication, it simplifies the management of UFACTORY robots for effortless operation. Its minimal footprint saves space in your application, making it ideal for space-constrained environments.
Specification
| UFACTORY 850 AC Control Box | UFACTORY 850 DC Control Box | |||
| Input | 100-240VAC 50/60Hz | 48-72VDC | ||
| Output | 48VDC 1000Wmax | 48VDC 960Wmax | ||
| Weight | 4.8kg | 2.8kg | ||
| Dimension(L*W*H) | 345*135*101mm | 262*160*76mm | ||
| Control Box IO | CI*8+DI*8 (Digital Input) |
CO*8+DO*8 (Digital Output) |
2*AI (Analog Input) |
2*AO (Analog Output) |
| Communication Mode | Ethernet, RS485 Master*1 | |||
