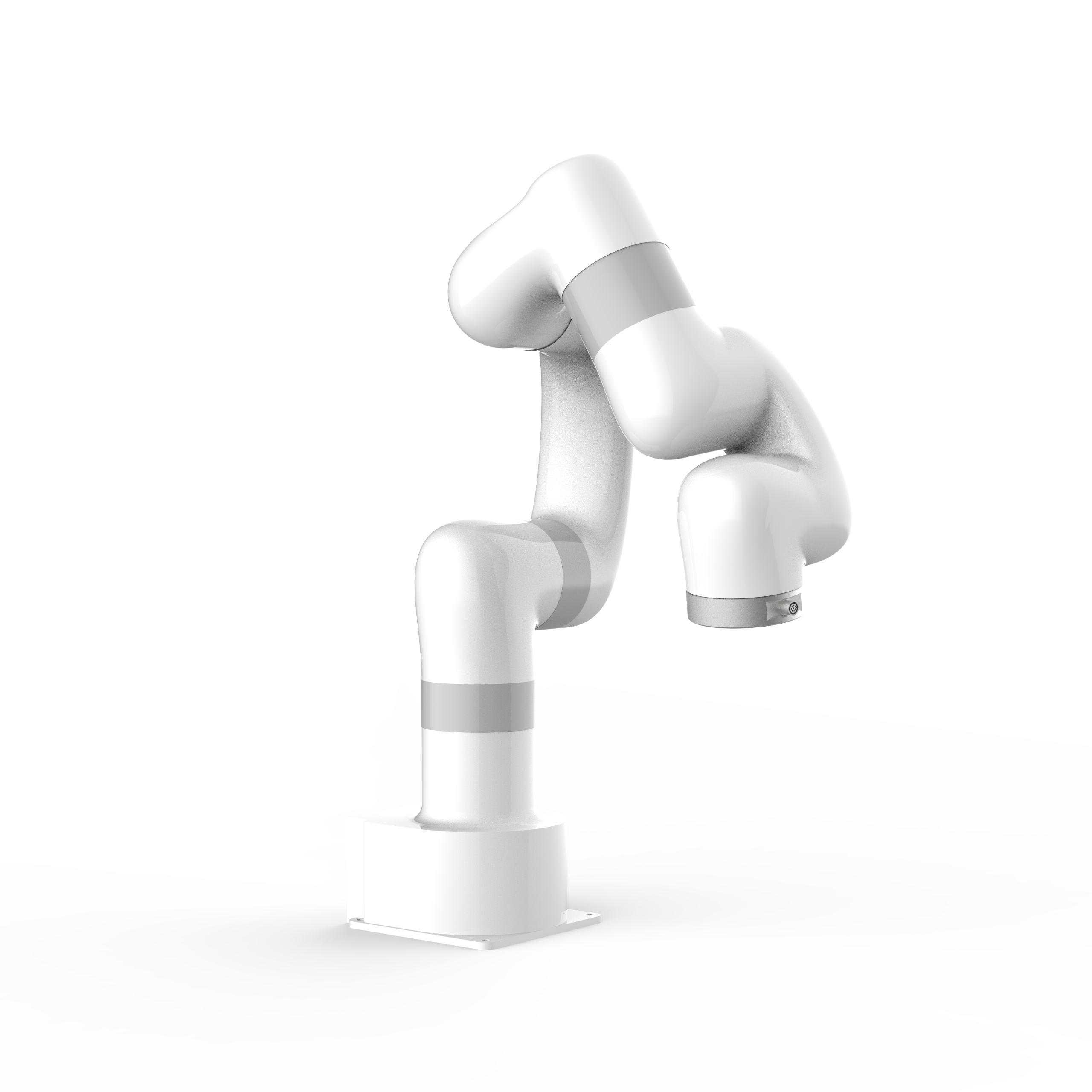

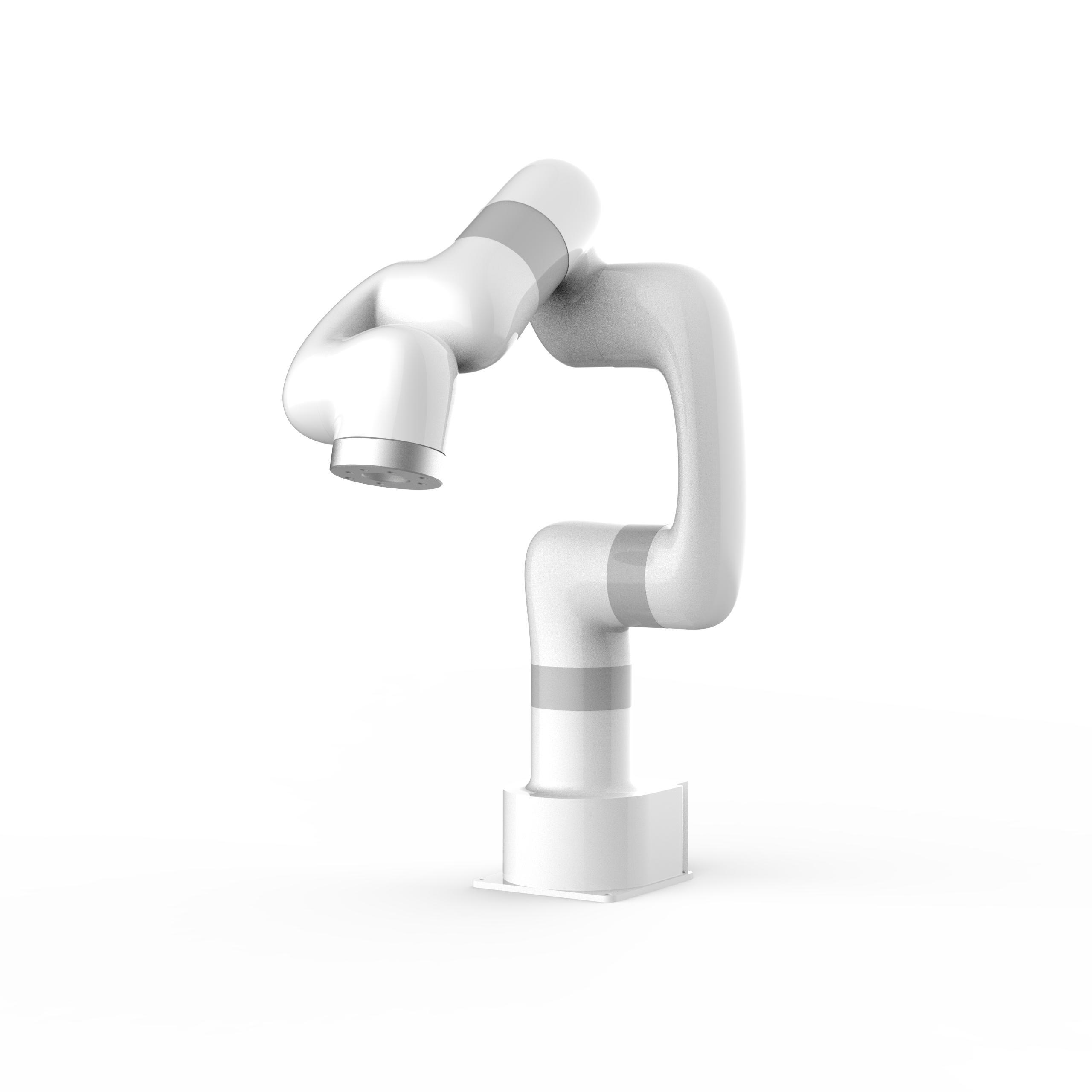

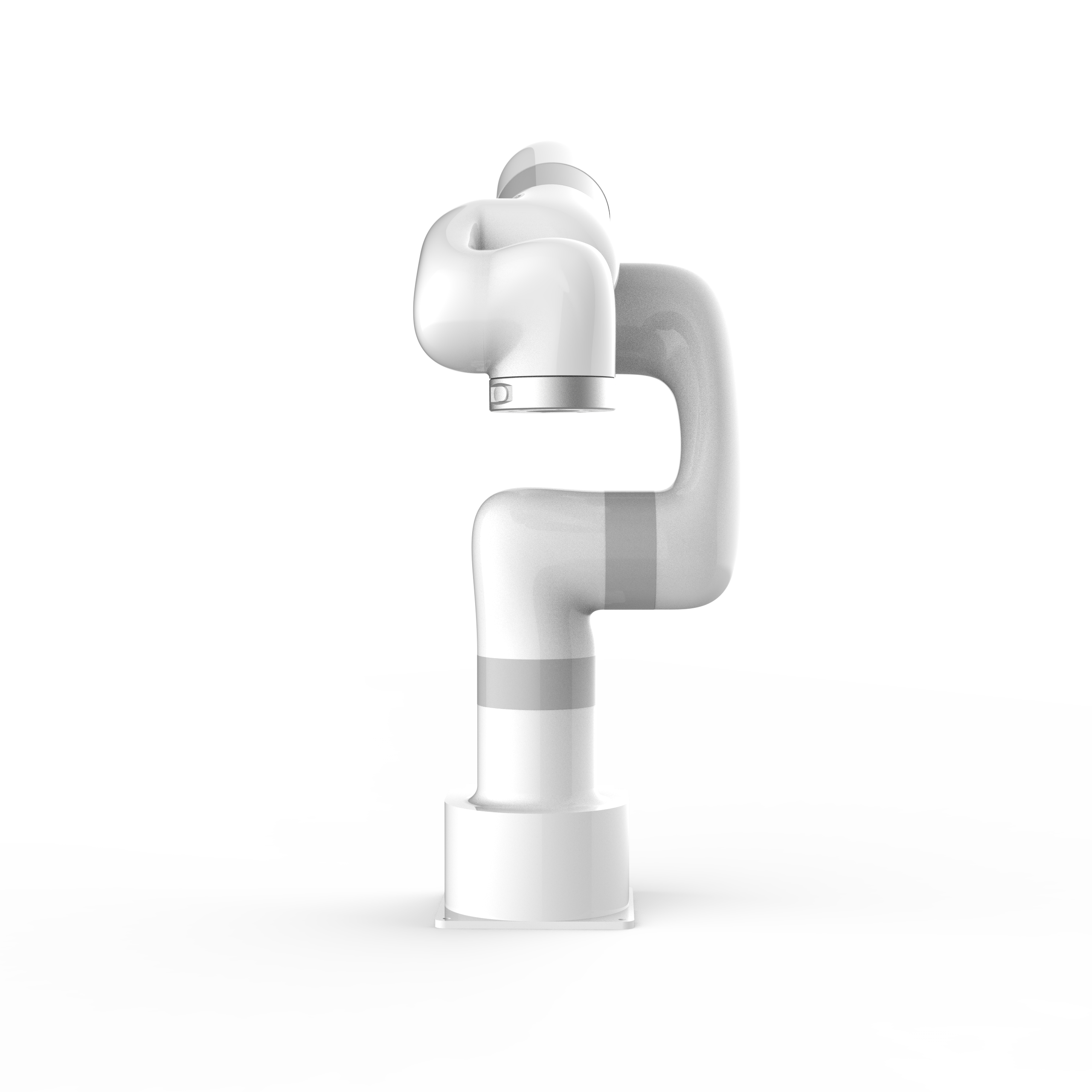

UFACTORY Lite 6

$2,999.00

  • 6 Axis
  • Payload 600 g
  • Reach 440 mm
  • Repeatability 0.5 mm
  • Max Speed 500 mm/s
Leadtime 1~2 weeks
Tips Terms of trade is EXW, which means you have to deal with the import tariff by yourself. The goods would be shipped from China.

Why Lite 6 ?

Lite 6

Lite 6 has 600 g payload and 0.5 mm repeatability. It is the most affordable 6 axis table-size robot arm on the market. It equips Direct-Drive motor and harmonic drive, which balance durability and cost. Lite 6 perfectly fits space saving tasks which are not high-accuracy sensitive.

Features

Graphical Programming

Hand Teaching

Collision Detection

Self-Collision Free

Safety Boundary

Trajectory Recording

Offline Task

Python

ROS/ROS2

3D Simulation

Robots Comparison

Product Lite6 xArm 5 Lite xArm 6 xArm 7
Payload 600 g 3 kg 5 kg 3.5 kg
Reach 440 mm 700 mm 700 mm 700 mm
Degree of freedom 6 5 6 7
Repeatability ±0.5 mm ±0.1 mm ±0.1 mm ±0.1 mm
Maximum Speed 500 mm/s 1 m/s 1 m/s 1 m/s
Weight(robot arm only) 7.2 kg 11.2 kg 12.2 kg 13.7 kg
